The TLV2372IDGKR is a high-performance operational amplifier (op-amp) from Texas Instruments, designed to offer a perfect blend of speed, precision, and low power consumption. This op-amp is part of the TLV237x family, which is known for its versatility in various applications, including industrial, automotive, and consumer electronics.

Key Features

• Rail-to-Rail Output: The TLV2372IDGKR features a rail-to-rail output swing, which ensures maximum dynamic range, especially useful in single-supply applications or when interfacing with analog-to-digital converters (ADCs).
• Low Noise: With a low noise density of 16 nV/√Hz at 1 kHz, this op-amp is ideal for audio and other sensitive applications where noise performance is critical.
• High Slew Rate: A high slew rate of 3.6 V/µs allows the TLV2372IDGKR to handle rapid changes in input signals without distortion, making it suitable for fast signal processing tasks.
• Wide Bandwidth: The device offers a wide bandwidth of 2.3 MHz, which enables it to process high-frequency signals with ease.
• Low Quiescent Current: It operates with a low quiescent current of 635 µA/channel, which is beneficial for battery-powered devices where power efficiency is a priority.
• Supply Voltage Range: The TLV2372IDGKR can operate over a wide supply voltage range from 2.7V to 16V, accommodating a variety of power sources and conditions.
• Dual-Channel: This dual op-amp configuration allows for more compact designs by reducing the number of components required for multiple signal processing channels.

Applications

The TLV2372IDGKR is suitable for a wide range of applications, including:

• Signal Conditioning
• Active Filters
• Audio Processing
• Sensor Amplification
• Data Acquisition Systems
• Battery-Powered Instruments
• Medical Devices

Package and Quality

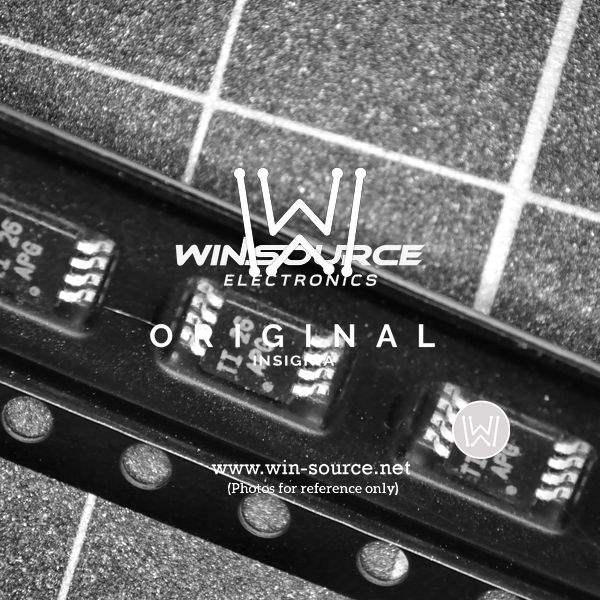

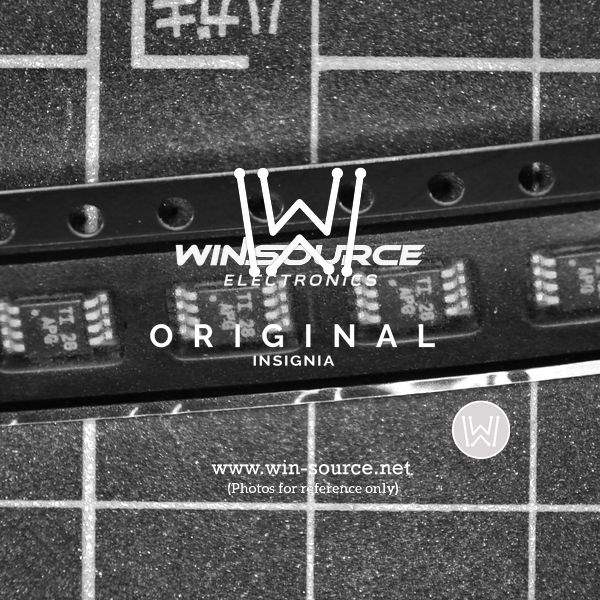

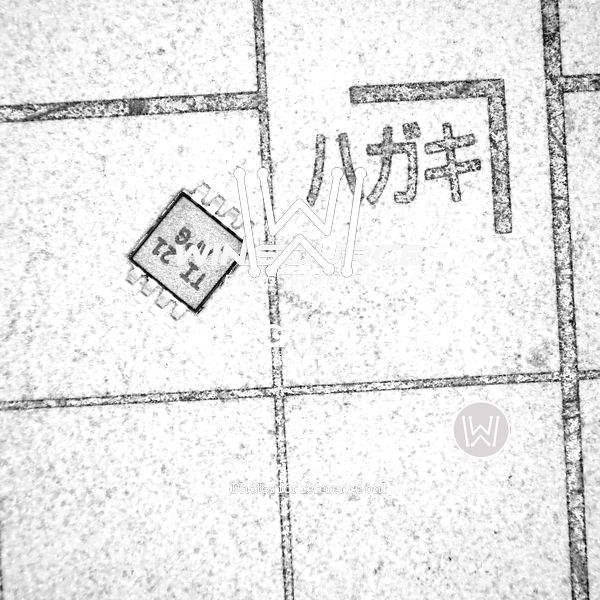

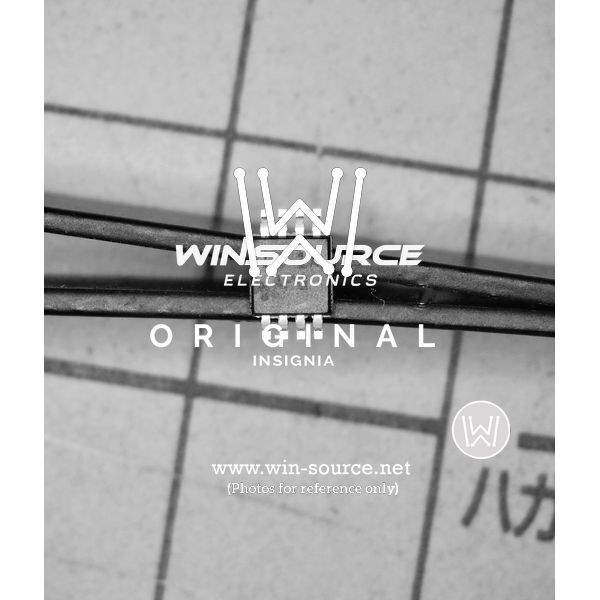

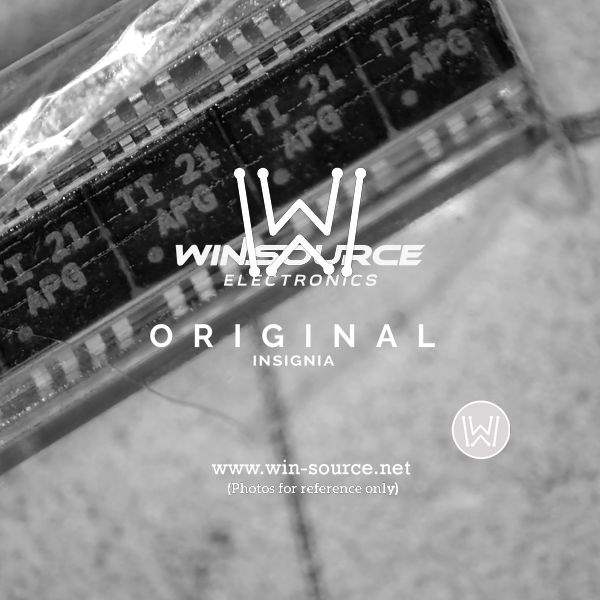

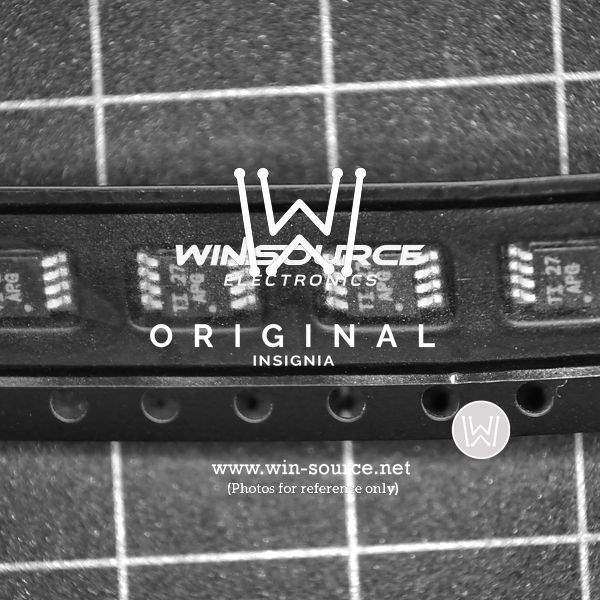

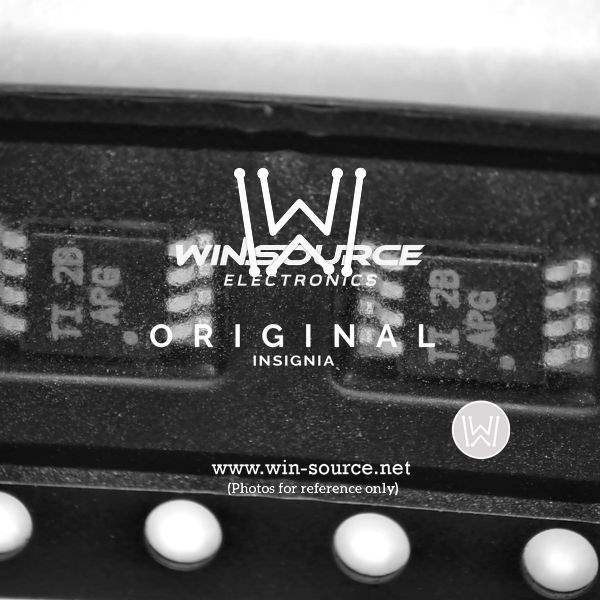

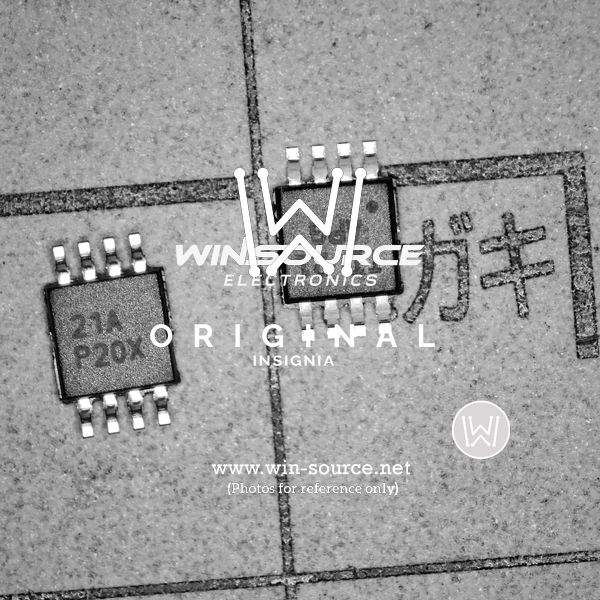

The device comes in an 8-pin VSSOP (DGK) package, which is compact and suitable for space-constrained applications. The TLV2372IDGKR is characterized for operation from -40°C to 125°C, ensuring reliable performance across a wide temperature range. Texas Instruments' commitment to quality ensures that this op-amp meets the stringent requirements of the industry for both performance and reliability.
