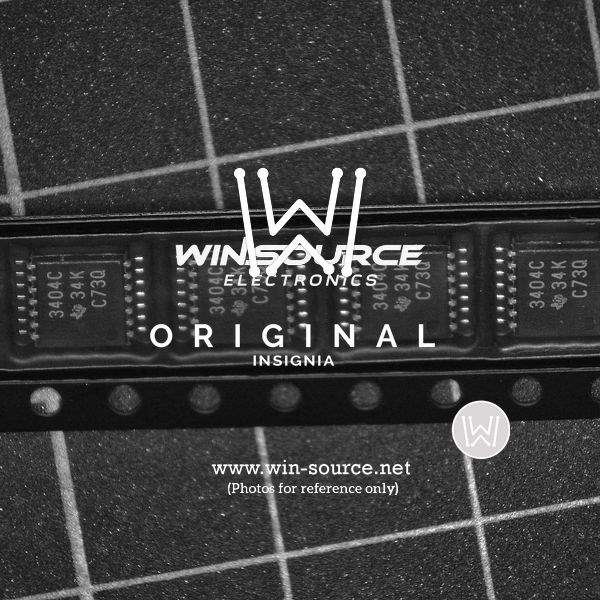

The TLV3404CPWR from Texas Instruments is a state-of-the-art quad comparator that offers a perfect blend of power efficiency and performance. Designed for applications that require multiple voltage level detections, this device is housed in a compact TSSOP-14 package, making it suitable for space-constrained applications.

Key Features:

• Supply Voltage: The device operates over a wide supply voltage range from 2.7V to 6V, catering to a variety of logic systems and battery-operated circuits.
• Low Power Consumption: With a typical quiescent current of 1 µA per channel, it is an excellent choice for power-sensitive designs, extending the battery life in portable devices.
• High-Speed Operation: The TLV3404CPWR boasts a fast response time, which is critical for applications that require rapid signal processing.
• Push-Pull Outputs: The comparators feature push-pull outputs that can drive loads directly without the need for external pull-up resistors, simplifying design and saving board space.
• Input Offset Voltage: Low input offset voltage ensures accurate sensing and comparison, which is vital for precision applications.
• Temperature Range: The device is specified for operation from -40°C to 125°C, allowing its use in a wide range of environmental conditions.

Applications:

The TLV3404CPWR is versatile and can be used in a diverse array of applications. It is ideal for battery monitors, threshold detectors, level shifters, and window comparators. Additionally, it is suitable for use in consumer electronics, automotive systems, and industrial controls where multiple voltage thresholds are monitored for system status or error conditions.

Quality and Reliability:

Texas Instruments is known for its commitment to quality, and the TLV3404CPWR is no exception. It is designed and tested to meet high standards, ensuring reliable performance in critical applications. The device is also RoHS compliant, reflecting Texas Instruments' dedication to environmental responsibility.
