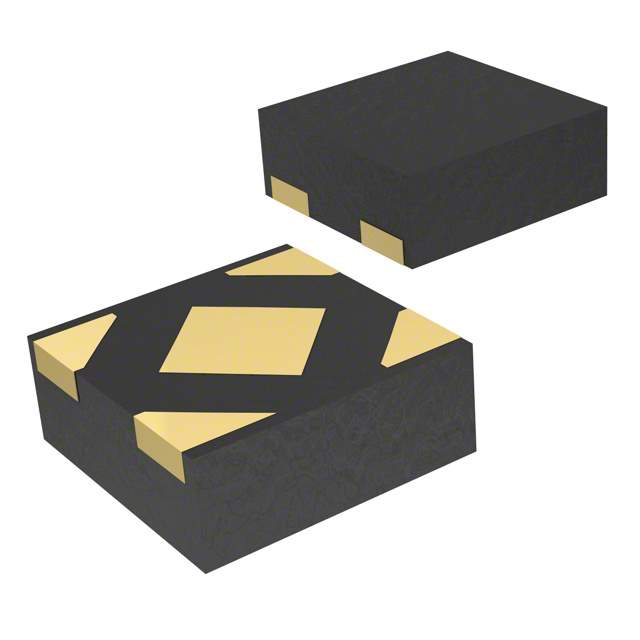

TLV71725PDQNR

Part No TLV71725PDQNR
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 2.5V 150MA 4X2SON / 150-mA, Low-Dropout Regulator with Foldback Current Limit for Portable Devices
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Packaging Reel
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 5.5V
Voltage - Output (Min/Fixed) 2.5V
Maximum Dropout Voltage 0.35V at 150mA
Current - Output 150mA
Current - Quiescent (Iq) 55μA
PSRR 70dB ~ 43dB (10Hz ~ 100kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 4-XDFN Exposed Pad
Supplier Device Package 4-X2SON (1x1)
Part Number Series TLV71725P
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809029-TLV71725PDQNR
Ultra Librarian 3D Model Ultra Librarian TLV71725PDQNR CAD Model

Description

The TLV71725PDQNR is a highly precise voltage regulator designed by Texas Instruments, tailored for applications requiring a low dropout and a compact footprint. This regulator is part of the TLV717 series, which is known for its low quiescent current and excellent line and load transient performance, making it a perfect fit for battery-powered devices and power-sensitive applications.

Key Features

  • Output Voltage: The TLV71725PDQNR provides a fixed output voltage of 2.5V, which is ideal for powering advanced microcontrollers, analog circuits, and digital interfaces that require stable voltage levels for optimal performance.
  • High Accuracy: With an accuracy level of 2%, this regulator ensures precise voltage delivery, contributing to the reliability and performance stability of the overall system.
  • Low Dropout: The low dropout feature enables the regulator to maintain output voltage regulation with a minimal difference between the input and output voltages, which is particularly beneficial during battery discharge when the input voltage declines.
  • Power Supply Rejection Ratio (PSRR): The device boasts an excellent PSRR, which minimizes the effect of supply voltage variations on the output, ensuring a consistent and clean voltage supply.
  • Quiescent Current: The device operates with a very low quiescent current, making it an energy-efficient choice for portable and battery-operated equipment.
  • Thermal Protection: Built-in thermal shutdown protection safeguards the device from overheating, enhancing its reliability and lifespan.
  • Package: The TLV71725PDQNR comes in a small X2SON package, which is suitable for space-constrained applications.

Applications

The TLV71725PDQNR is versatile and can be used in a variety of applications, including but not limited to:

  • Portable and battery-powered devices
  • Wireless communication systems
  • Power management for microcontrollers and sensors
  • Handheld medical equipment
  • Smart meters and smart home devices

With its combination of high accuracy, low dropout, and energy efficiency, the TLV71725PDQNR from Texas Instruments stands out as a robust solution for maintaining stable voltages in critical electronic circuits.
