Overview of Texas Instruments TLV8812DGKR

The TLV8812DGKR from Texas Instruments is a precision operational amplifier that offers the perfect blend of performance and power efficiency. This device is part of the TLV881x family, which is known for its low-power consumption and high accuracy. The TLV8812DGKR is designed to meet the requirements of a wide range of applications, including sensor conditioning, active filtering, and low-power battery-operated devices.

Key Features

• Low Power Consumption: With a quiescent current of just 10 μA per channel, the TLV8812DGKR is an ideal choice for battery-powered applications where power efficiency is critical.
• Wide Supply Voltage Range: The device operates over a supply voltage range of 1.8 V to 5.5 V, making it versatile for various power supply configurations.
• High Accuracy: Its precision design ensures low offset voltage and low drift over time and temperature, contributing to the high accuracy of the end application.
• Dual Operational Amplifiers: The TLV8812DGKR contains two independent op-amps in a single package, providing design flexibility and saving board space.
• Extended Temperature Range: This op-amp is operational over an extended temperature range from -40°C to +125°C, suitable for industrial and automotive applications.

Package and Quality

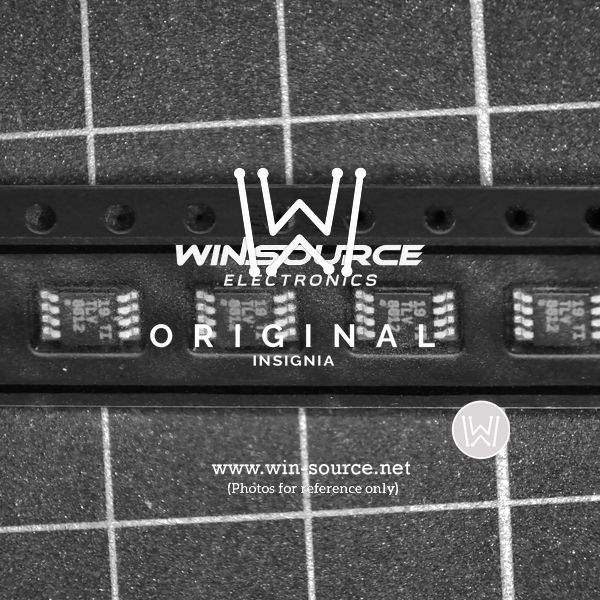

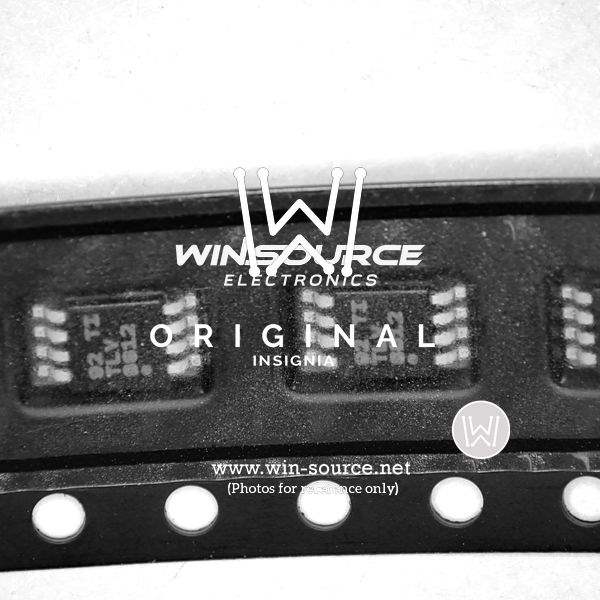

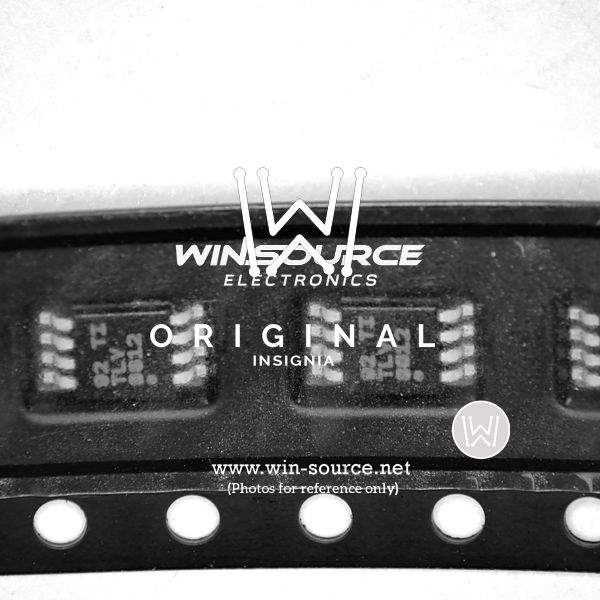

Housed in an 8-pin VSSOP (DGK) package, the TLV8812DGKR is compact and suitable for space-constrained applications. The package is RoHS compliant and follows Texas Instruments' commitment to environmentally friendly manufacturing processes.

Applications

The TLV8812DGKR is designed for a variety of applications across multiple industries. Its low power and high precision make it an excellent choice for portable medical devices, consumer electronics, and industrial sensors. Additionally, its robust performance in temperature extremes allows it to be used in automotive systems and other harsh environments.

Conclusion

In summary, the Texas Instruments TLV8812DGKR operational amplifier is a highly efficient, precise, and reliable component that enhances the performance of a multitude of electronic circuits. Its dual-channel configuration, low power requirements, and wide operating temperature range make it a versatile choice for designers looking to optimize their applications in terms of power, space, and performance.
