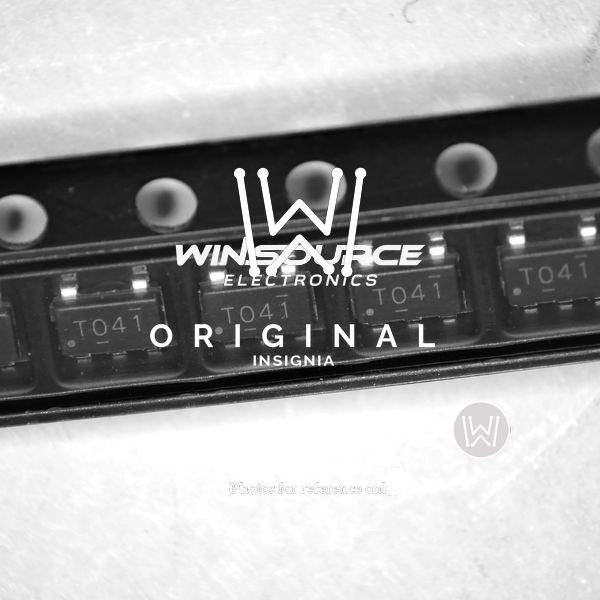

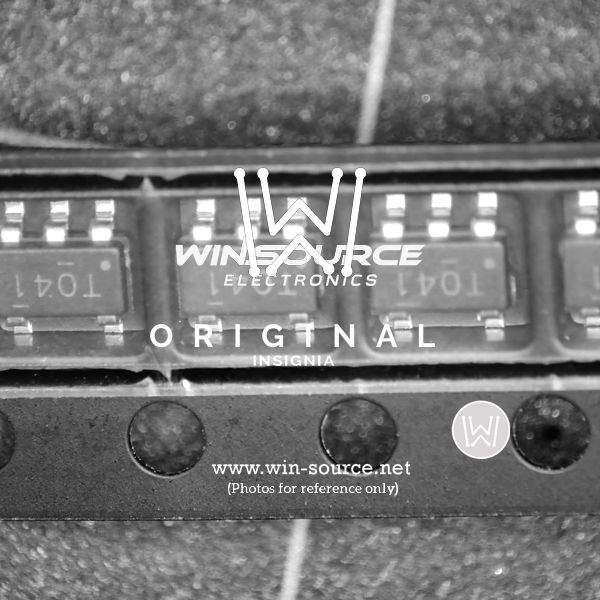

TLV9041IDBVR Operational Amplifier by Texas Instruments

The TLV9041IDBVR from Texas Instruments is a high-performance, single-channel operational amplifier (op-amp) designed for a wide range of applications. This op-amp comes in a compact SOT-23-5 package, making it an ideal choice for space-constrained applications. With its low input bias current and low power consumption, the TLV9041IDBVR is particularly well-suited for battery-powered devices and portable electronics.

Key Features:

• Supply Voltage Range: The device operates from a supply voltage range of 1.8V to 5.5V, allowing for flexibility in various circuit designs and compatibility with both single and dual supply operations.
• Low Power Consumption: With a quiescent current of just 335 µA, the TLV9041IDBVR is optimized for low-power applications, ensuring extended battery life in portable devices.
• Wide Bandwidth: It offers a bandwidth of 1MHz, which is suitable for a broad range of audio and data signal processing tasks.
• Low Input Bias Current: The input bias current is as low as 1pA, which minimizes errors in high impedance sensor circuits and precision applications.
• High Output Drive Capability: The op-amp can deliver a high output current, making it capable of driving heavier loads when required.
• Temperature Range: The device is operational over an extended industrial temperature range from -40°C to +125°C, ensuring reliability across various environmental conditions.
• Robust Design: The TLV9041IDBVR features input over-voltage protection for voltages up to ±5.5 V, even during power-off conditions, enhancing the durability of the op-amp.

Applications:

The TLV9041IDBVR is versatile and can be used in a multitude of applications, including:

• Sensor signal conditioning
• Active filtering
• Battery-powered devices
• Portable medical instruments
• Power supply control
• Audio electronics
• Analog to digital converter (ADC) buffer

Overall, the TLV9041IDBVR from Texas Instruments is a reliable and efficient solution for designers looking to optimize their circuitry with a high-quality operational amplifier that offers a balanced trade-off between power consumption and performance.
