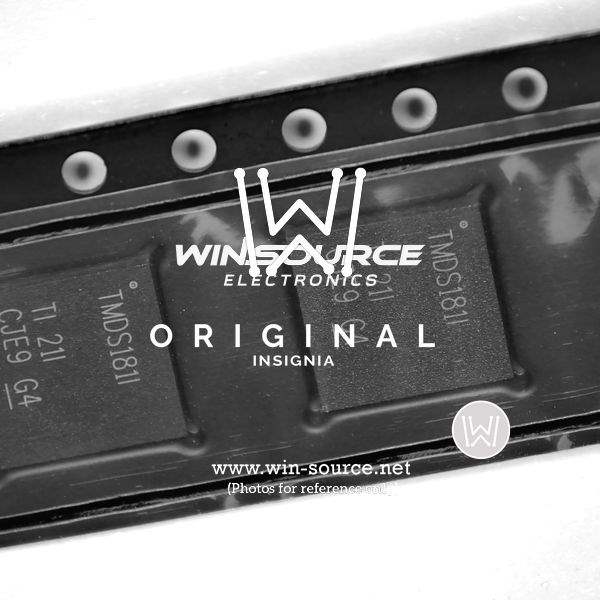

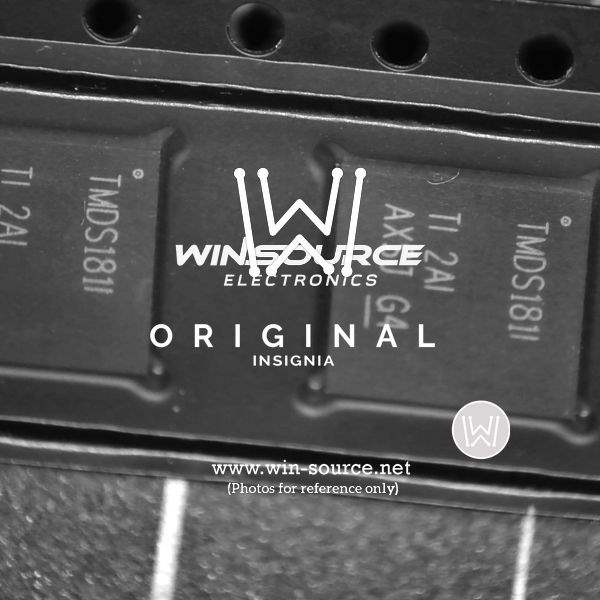

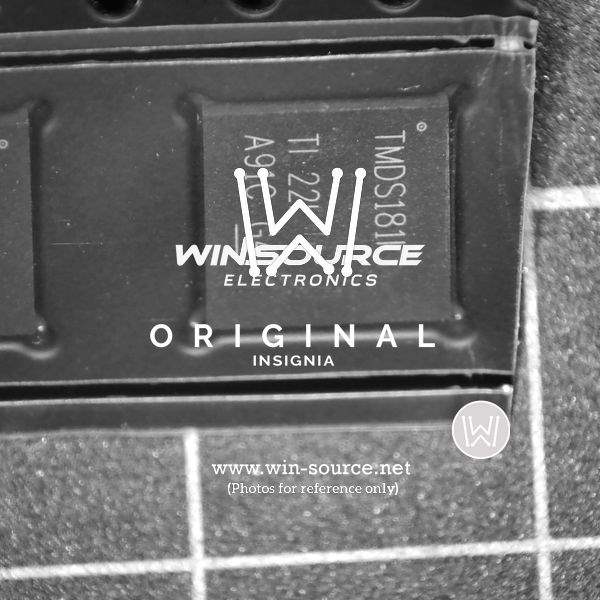

Product Overview: TMDS181IRGZR by Texas Instruments

The TMDS181IRGZR is a high-performance HDMI retimer from Texas Instruments designed to enhance signal integrity and extend the reach of high-speed digital video interfaces. This device is part of TI's extensive interface portfolio and is engineered to meet the rigorous demands of modern video applications, including consumer electronics, gaming consoles, and professional AV systems.

Key Features

• HDMI 2.0 Compliance: Supports data rates up to 6 Gbps per channel, enabling 4K resolution at 60Hz refresh rate.
• Adaptive Equalization: Features built-in adaptive equalization up to 15dB, allowing for optimization of signal integrity over long cable runs.
• Retiming: Integrated retiming functionality ensures reduced jitter and electromagnetic interference (EMI) for improved signal quality.
• Audio Return Channel (ARC): Supports ARC for simplified audio connectivity, reducing the need for additional audio cables.
• I2C Programmable: Offers programmable settings via I2C interface, providing designers with flexibility in system configuration.
• Low Power Consumption: Designed with power efficiency in mind to minimize thermal footprint and energy usage.
• Robust ESD Protection: Equipped with built-in electrostatic discharge (ESD) protection to safeguard against voltage spikes.

Applications

The TMDS181IRGZR is suitable for a wide range of applications that require high-definition video transmission with impeccable quality. Some common applications include:

• Home theater systems and AV receivers
• Professional video editing and broadcasting equipment
• Digital signage and large-scale video displays
• Gaming consoles and VR/AR systems
• Video conferencing and collaboration tools

Package and Quality

This device is offered in a compact VQFN (Very Thin Quad Flat No-Lead) package, making it suitable for space-constrained applications. Texas Instruments adheres to strict quality standards, ensuring that the TMDS181IRGZR meets or exceeds industry reliability benchmarks for high-speed digital interfaces.

For designers and engineers looking to enhance their video systems with advanced signal conditioning and extended cable reach, the TMDS181IRGZR provides a sophisticated solution that combines performance with ease of use.
