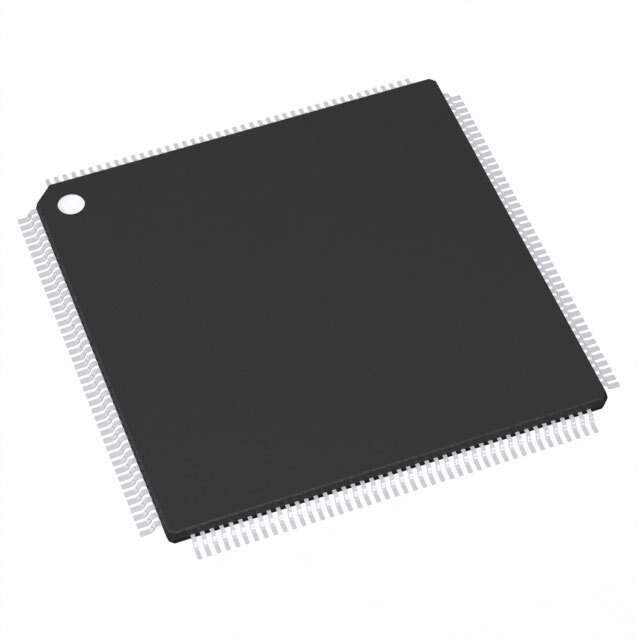

Product Overview: TMS320C6745DPTPA3

The TMS320C6745DPTPA3 is a high-performance digital signal processor (DSP) from Texas Instruments, designed for applications requiring efficient, high-quality digital signal processing. This processor is part of the TMS320C674x DSP family, which is known for its blend of the real-time signal processing capabilities of a DSP and the functionality of a microcontroller (MCU).

Key Features

• Core: The device features a fixed/floating-point C674x DSP core, which operates at a frequency of up to 375 MHz, providing up to 3000 MIPS (Million Instructions Per Second).
• Memory: It comes equipped with integrated memory, including 32KB of L1 program cache, 32KB of L1 data cache, 256KB of L2 cache, and 64KB of RAM, which facilitate swift data processing and real-time operations.
• Interfaces: A variety of peripherals and interfaces are supported, such as UART, SPI, I2C, McASP (Multichannel Audio Serial Port), and 10/100 Mbps Ethernet MAC, ensuring versatile connectivity options for different application needs.
• Power Efficiency: The TMS320C6745DPTPA3 is designed with power efficiency in mind, featuring multiple power-down modes and a smart reflex power management system that adjusts power consumption based on workload requirements.
• Integrated Peripherals: This DSP includes a rich set of integrated peripherals that reduce the need for external components, thus lowering system cost and complexity. These include timers, GPIO, and a DMA controller for efficient data movement.

Applications

The TMS320C6745DPTPA3 DSP is ideal for a wide range of applications, such as:

• Industrial control and automation
• Audio and voice processing
• Medical imaging
• Test and measurement equipment
• Communication infrastructure

Design Support

Texas Instruments provides extensive design support for the TMS320C6745DPTPA3, including development tools, software libraries, and reference designs to help accelerate product development and reduce time to market. With its robust feature set and support ecosystem, this DSP is an excellent choice for engineers looking to implement advanced digital signal processing in their next project.
