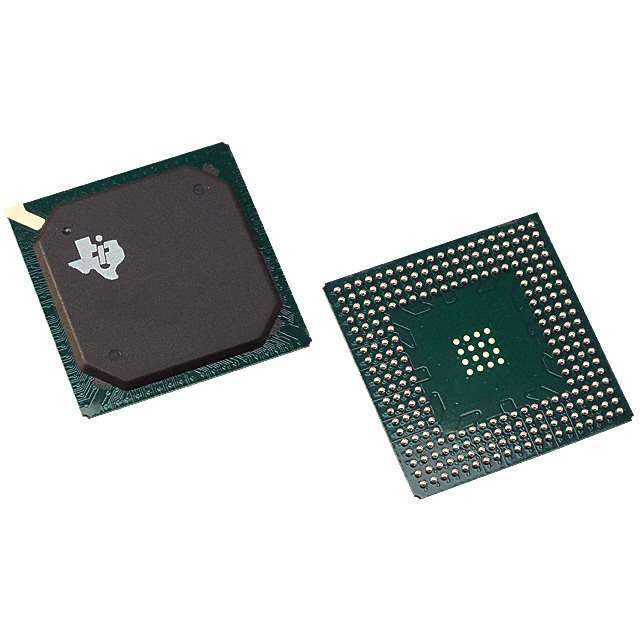

The TMS320C6747DZKB4 is a high-performance digital signal processor (DSP) from Texas Instruments, designed for a wide array of applications that require intensive signal processing capabilities. This DSP is part of the TMS320C674x family, which is well-known for its low-power consumption and efficient processing, making it an ideal choice for both industrial and consumer products.

Key Features:

• Clock Speed: The device operates at a clock speed of up to 456 MHz, providing robust processing power for complex algorithms and high-speed data processing.
• Memory: It features an integrated memory controller with support for 16-bit and 32-bit DDR2, mDDR, and SDRAM, ensuring flexible and efficient memory usage.
• Cache: The DSP includes a 64KB L1 program cache and a 64KB L1 data cache, as well as a 256KB L2 cache that can be configured as SRAM for additional flexibility.
• Peripherals: A rich set of peripherals is integrated, including a 10/100 Mb/s Ethernet MAC, a high-speed USB 2.0 OTG interface, and an ATA/ATAPI controller, among others.
• Audio Processing: With its powerful signal processing capabilities, the TMS320C6747DZKB4 excels in audio applications, supporting multiple audio codecs and enabling high-quality audio systems.
• Low Power Consumption: The device is designed with power efficiency in mind, featuring multiple power-saving modes to reduce overall power consumption in various operational states.

Applications:

The TMS320C6747DZKB4 is versatile and can be used in a range of applications, including but not limited to:

• Professional and consumer audio equipment
• Industrial control and automation systems
• Test and measurement instruments
• Medical imaging devices
• Telecommunications infrastructure

This DSP from Texas Instruments is a powerful solution for designers looking to integrate advanced signal processing into their products with the assurance of quality and reliability that comes with the Texas Instruments brand.
