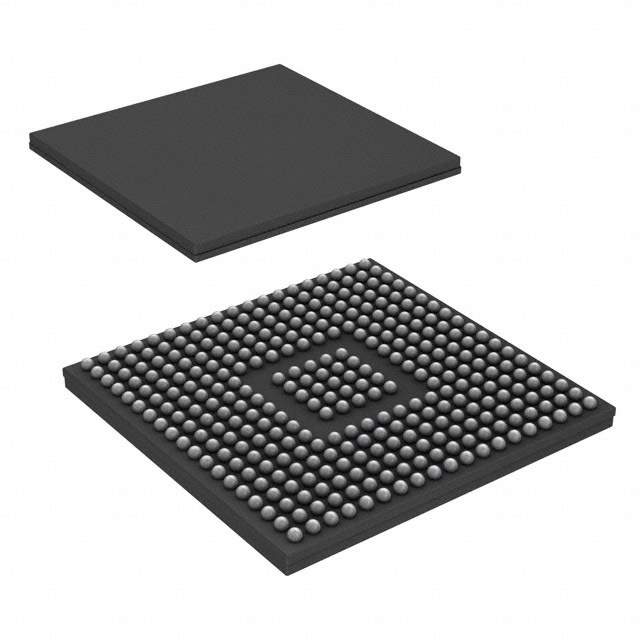

The TMS5701224CZWTQQ1 is a high-performance automotive-grade microcontroller designed and manufactured by Texas Instruments (TI). This robust microcontroller is part of the Hercules TMS570 series, which is specifically engineered to meet the rigorous standards of the automotive industry, providing an ideal solution for safety-critical applications.

Key Features:

• ARM Cortex-R4F Core: At the heart of the TMS5701224CZWTQQ1 is a powerful ARM Cortex-R4F core that runs at speeds up to 180 MHz, offering high-performance processing capabilities with built-in safety features.
• Memory: The device comes equipped with 1.25MB of integrated Flash memory and 192KB of data RAM, ensuring sufficient space for complex applications and data storage.
• High-Reliability: With built-in error correction code (ECC) on both Flash and RAM, the microcontroller provides higher data integrity and reliability, crucial for safety-critical systems.
• Rich Peripherals: It includes a diverse range of peripherals such as multiple CAN (Controller Area Network) interfaces, Ethernet, LIN (Local Interconnect Network), and FlexRay, supporting a wide array of communication protocols.
• Advanced Timer Modules: The TMS5701224CZWTQQ1 features advanced timer modules including Next Generation High-End Timer (N2HET) and High-End Timer Transfer Unit (HTU) which are designed for complex timing and control operations.
• Robust Safety Features: The microcontroller is designed with safety in mind, incorporating features such as dual CPUs in lockstep, built-in self-test functionalities, and a memory protection unit (MPU) to ensure system integrity.

Applications:

The TMS5701224CZWTQQ1 is well-suited for a variety of automotive applications, including:

• Advanced Driver Assistance Systems (ADAS)
• Brake and Stability Control
• Electric Power Steering
• Hybrid and Electric Vehicle Control Units
• Body Control Modules

With its combination of performance, memory capacity, and safety features, the TMS5701224CZWTQQ1 from Texas Instruments stands out as a reliable and efficient choice for developers and engineers looking to create advanced automotive systems that require the highest levels of safety and reliability.
