Overview of the TMUX7211RUMR from Texas Instruments

The TMUX7211RUMR is a high-performance, precision analog multiplexer from Texas Instruments (TI), designed to offer exceptional signal switching capabilities for a wide range of applications. This device is a part of TI's renowned TMUX series, which is known for its reliability and versatility in various electronic systems.

Featuring a single 8:1 configuration, the TMUX7211RUMR allows for seamless routing of analog or digital signals to a single output channel from eight input sources. This makes it an excellent choice for data acquisition systems, test equipment, and multipoint monitoring applications where space and component count are at a premium.

The TMUX7211RUMR operates with a dual-supply voltage range from ±5.5V to ±16.5V, or a single supply voltage from 10.8V to 16.5V. This flexibility in power supply requirements ensures that it can be easily integrated into various circuit designs without the need for additional components.

With its low on-state resistance and on-state resistance flatness, the TMUX7211RUMR ensures minimal signal distortion and provides excellent signal integrity, which is critical for precision applications. The device also boasts a low charge injection, which minimizes the impact on the signal during switching events, preserving the quality of the transmitted data.

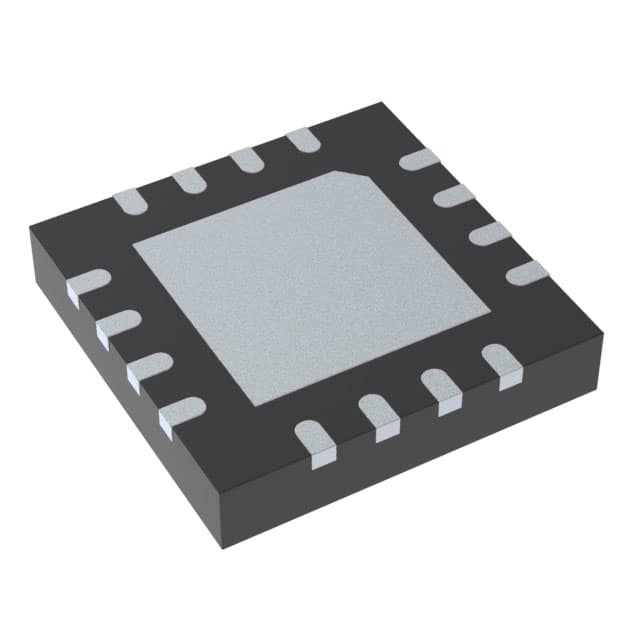

The TMUX7211RUMR comes in a compact, surface-mount, microQFN-16 package, which is ideal for space-constrained applications. With its extended industrial temperature range of -40°C to 125°C, the device is suitable for use in harsh environments, ensuring reliable performance under varying conditions.

In terms of protection features, TI has equipped the TMUX7211RUMR with electrostatic discharge (ESD) protection circuitry, which safeguards the device against unintended voltage spikes. Additionally, the break-before-make switching mechanism prevents signal overlap during channel transitions, thus avoiding potential short-circuit conditions.

Integrating the TMUX7211RUMR into your design will deliver not only a high degree of functionality but also the peace of mind that comes with using components from Texas Instruments, a leader in the semiconductor industry.
