Overview of Texas Instruments TPA2010D1YZFT

The TPA2010D1YZFT is a high-fidelity, filter-free Class-D audio power amplifier from Texas Instruments, designed for portable applications. This compact and efficient device is a perfect choice for any project requiring a low-power audio boost while maintaining clarity and quality.

Key Features

• Efficiency: As a Class-D amplifier, the TPA2010D1YZFT offers greater than 90% efficiency, which significantly reduces power consumption and extends battery life in portable devices.
• Output Power: It delivers 2.5W into a 4Ω load with less than 1% THD+N, ensuring loud and clear sound output.
• Filter-Free Operation: The device requires no external output filter, which reduces external component count and simplifies circuit design.

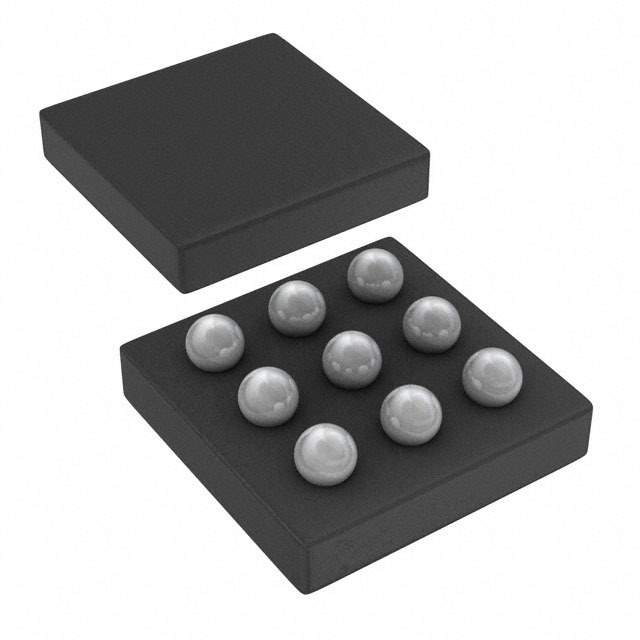

• Space-Saving Design: Housed in a compact 9-bump DSBGA package (YZF suffix), it minimizes the footprint on the PCB, making it ideal for space-constrained applications.
• Advanced Features: It includes a shutdown control for power conservation, a 32-step digital volume control, and a 1.8V compatible shutdown pin.

Applications

The TPA2010D1YZFT is versatile and can be used in a variety of devices, including:

• Mobile Phones
• Portable Media Players
• Handheld Gaming Devices
• Tablet Computers
• GPS Units

Technical Specifications

• Supply Voltage Range: 2.5V to 5.5V
• Quiescent Current: 4mA
• Shutdown Current: 0.1µA (typical)
• Gain Bandwidth Product: 20MHz (typical)
• Operating Temperature Range: -40°C to 85°C

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the TPA2010D1YZFT is no exception. It is designed to meet the rigorous demands of the consumer electronics industry, ensuring high reliability and performance.

With its combination of power efficiency, compact design, and high-quality audio output, the TPA2010D1YZFT is an excellent audio amplification solution for designers looking to enhance the audio experience in their portable applications.
