Overview of Texas Instruments TPA2029D1YZFR

The TPA2029D1YZFR is a highly efficient, mono Class-D audio power amplifier designed by Texas Instruments (TI) to deliver exceptional sound quality for portable applications. This compact yet powerful component is ideal for a range of devices, including smartphones, tablets, laptops, and other portable electronics that require high-quality audio output with minimal power consumption.

Key Features

• Output Power: The TPA2029D1YZFR can deliver up to 3.2W into a 4Ω load with less than 1% distortion (THD+N), ensuring loud and clear audio performance without compromising sound quality.
• Efficiency: As a Class-D amplifier, it offers high efficiency, which is crucial for battery-powered devices. This efficiency helps to extend the battery life of portable products.
• Integrated Depop Circuitry: The device includes depop circuitry that minimizes the pop and click noise during power on and off transitions, providing a smoother user experience.
• Dynamic Range Compression (DRC): The built-in DRC and AGC (Automatic Gain Control) functions protect speakers from damage due to over-powering and improve audio quality in noisy environments.
• Multiple Gain Settings: It provides 12 different gain settings that can be controlled via an external gain-select pin, allowing for flexible volume control tailored to specific applications.

Advanced Specifications

• Supply Voltage Range: The device operates over a wide 2.5V to 5.5V supply voltage range, compatible with various power sources.
• Low Quiescent Current: It has a low quiescent current of 2.4mA, further contributing to the overall power efficiency of the system.
• Thermal and Short-Circuit Protection: The TPA2029D1YZFR includes thermal and short-circuit protection with auto recovery, ensuring reliability and safety in operation.

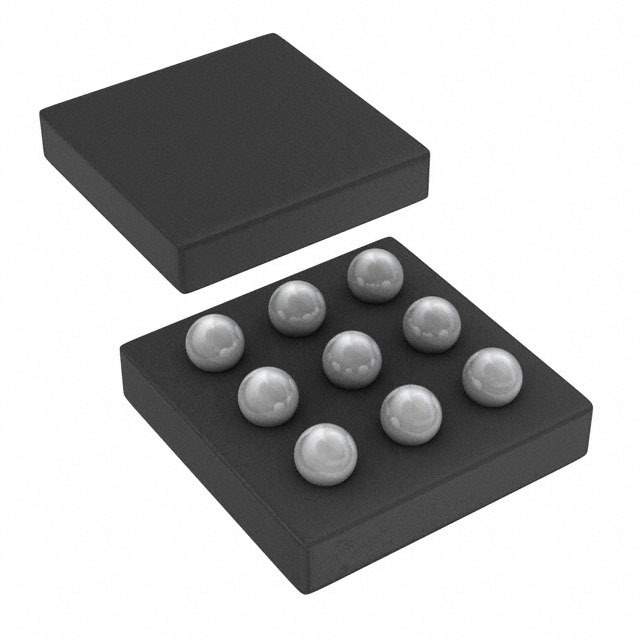

• Packaging: It comes in a compact 9-ball WCSP (Wafer Chip Scale Package) that is ideal for space-constrained applications.

Applications

The TPA2029D1YZFR is suitable for a variety of applications where space and power efficiency are critical. It is commonly used in portable audio devices, docking stations, and digital assistants, where its small footprint and high-quality audio amplification are highly valued.

With its robust feature set and reliable performance, the TPA2029D1YZFR from Texas Instruments stands out as a top choice for designers looking to enhance the audio experience in their portable electronic devices.
