The TPD4E001DRSR is a state-of-the-art, four-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection device manufactured by Texas Instruments. This compact and robust component is designed to safeguard high-speed interfaces from damaging ESD events that can occur during handling or operation. It is an ideal solution for a wide range of applications, including USB interfaces, video lines, SIM card interfaces, and other high-frequency data lines.

The TPD4E001DRSR features low clamping voltage and low capacitance, making it well-suited for protecting sensitive electronic circuits without compromising signal integrity. With a typical capacitance of just 0.8 pF per channel, it ensures minimal impact on signal quality for high-speed data transmission. The device is capable of withstanding ESD strikes up to ±8 kV (Contact Discharge) and ±15 kV (Air-Gap Discharge) as per the IEC 61000-4-2 international standard, providing robust protection against common ESD threats.

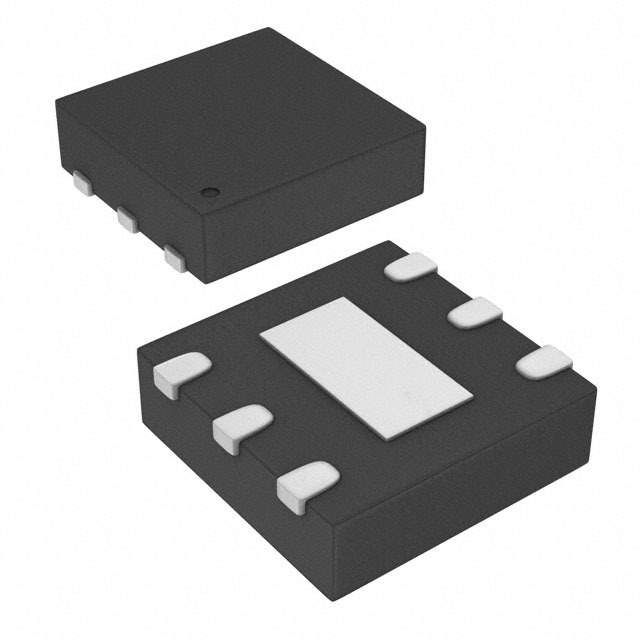

This protection device comes in a compact RSR package, making it a space-saving solution for modern electronic designs where PCB real estate is at a premium. The TPD4E001DRSR's small form factor does not compromise its performance, offering low dynamic resistance and fast response times to transient events. It is also characterized for operation from –40°C to 85°C, ensuring reliable protection across a wide temperature range.

Integration of the TPD4E001DRSR in electronic systems is straightforward, thanks to its compatibility with industry-standard manufacturing processes. The device's low leakage current ensures that it does not significantly affect the power consumption of the end application, making it suitable for battery-operated devices. Additionally, the TPD4E001DRSR is RoHS compliant and free from halogenated compounds, reflecting Texas Instruments' commitment to environmental sustainability.

In summary, the TPD4E001DRSR from Texas Instruments is an essential component for designers looking to enhance the ESD robustness of their products without sacrificing performance or space. Its combination of low capacitance, high ESD protection, and compact footprint makes it an excellent choice for a wide array of applications requiring reliable and efficient ESD protection.
