Introducing the TPD4E004DRYR from Texas Instruments

The TPD4E004DRYR is a state-of-the-art, low-capacitance ESD protection device designed by Texas Instruments to safeguard high-speed data interfaces against electrostatic discharge (ESD) and other voltage-induced transient events. This compact and efficient solution is ideal for a wide range of applications, including USB interfaces, HDMI, DisplayPort, and other high-speed data lines where signal integrity and protection are paramount.

Key Features

• ESD Protection: The TPD4E004DRYR offers robust ESD protection for high-speed data lines, capable of withstanding ESD strikes up to ±8 kV (IEC 61000-4-2, Contact Discharge) and ±15 kV (IEC 61000-4-2, Air-Gap Discharge), ensuring the longevity and reliability of electronic components.
• Low Capacitance: With an ultra-low capacitance of 0.8 pF (typical) per channel, the device minimizes signal attenuation, making it suitable for applications requiring high data rates without compromising signal integrity.

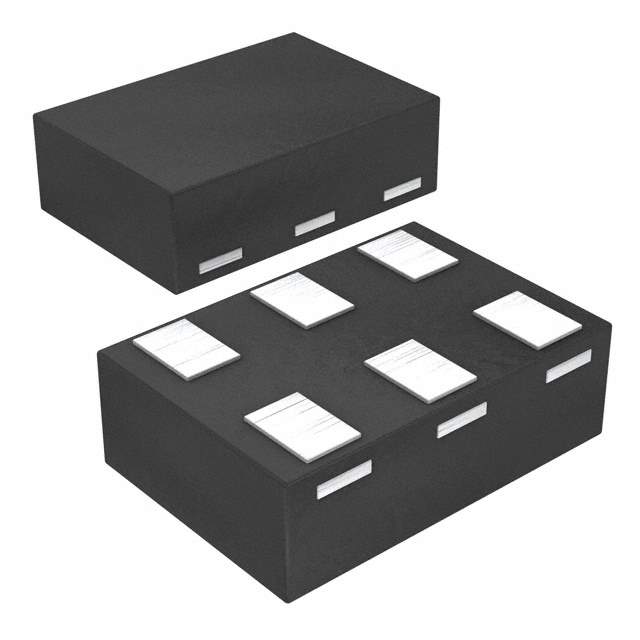

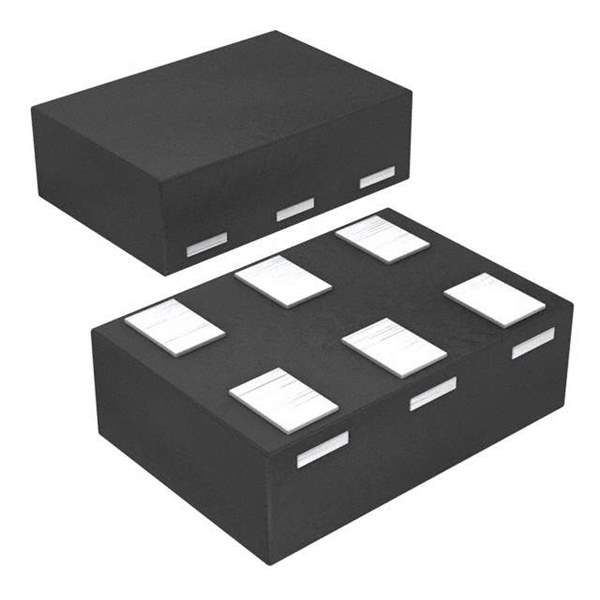

• Small Package Size: The TPD4E004DRYR is offered in a compact 6-pin SOT (DRY) package, allowing for space-saving PCB designs and making it an excellent choice for portable and space-constrained electronics.
• Multi-Channel Integration: The device integrates four ESD protection channels, providing a cost-effective solution by reducing the number of components required for multi-line protection.
• Wide Operating Range: It features a broad operating voltage range and is compatible with various industry-standard interfaces, ensuring versatility across different design specifications.

Applications

The TPD4E004DRYR is engineered to meet the demands of a diverse array of applications. Its high-performance ESD protection makes it an essential component in:

• Consumer Electronics such as smartphones, tablets, and laptops
• Communication Systems like network routers and switches
• Computing Peripherals including monitors, printers, and external storage devices
• Portable Medical Devices that require reliable data transmission
• Industrial Equipment with digital interfaces

In conclusion, the TPD4E004DRYR from Texas Instruments represents a blend of advanced protection technology, high-speed performance, and design flexibility, making it a top choice for designers looking to enhance the ESD robustness of their high-speed data interfaces.
