The TPS2205IDB is a sophisticated integrated circuit designed by Texas Instruments, tailored for managing power distribution within dual-slot PC Card applications. This power-interface switch is engineered to cater to the power requirements of two PC Cards, commonly used in notebook computers and other portable devices. The TPS2205IDB is specifically crafted to provide a seamless and efficient power control solution for Type I, Type II, and Type III PC Card standards.

Key Features:

• Independent Slot Control: The TPS2205IDB offers independent control of the VCC and VPP power supplies to each PC Card slot, allowing for versatile power management and compatibility with a diverse range of PC Cards.
• Integrated Switching: It includes built-in 1-Ohm MOSFET switches that provide the main power distribution to the PC Cards, ensuring minimal voltage drop and efficient power delivery.
• Thermal and Short-Circuit Protection: Advanced protection features are incorporated to safeguard against over-current conditions, thermal overload, and short circuits, enhancing the reliability and longevity of both the power interface switch and the PC Cards.
• Low Power Consumption: The TPS2205IDB is designed for low quiescent current, which is critical for battery-powered devices, helping to conserve energy and extend battery life.
• Smart Power Management: It includes an automatic feature to switch off the VPP supply to a card slot when a card is not present, avoiding unnecessary power usage.

Applications:

The TPS2205IDB is ideal for a variety of applications that require reliable and efficient power distribution to PC Cards, including:

• Notebook Computers
• Portable Instrumentation
• Personal Digital Assistants (PDAs)
• Other Portable Devices

Technical Specifications:

• Input Voltage Range: 3V to 5.5V
• Operating Temperature Range: -40°C to 85°C

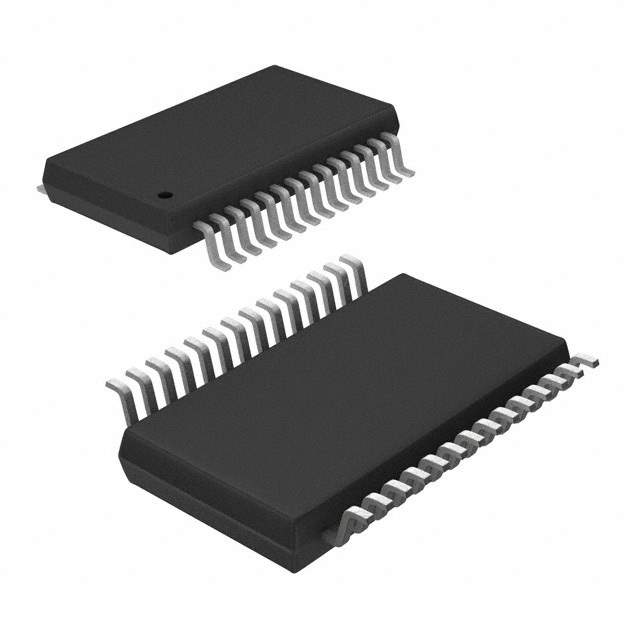

• Package: 30-SSOP (Shrink Small Outline Package)

With the TPS2205IDB, Texas Instruments continues its tradition of providing innovative power management solutions that meet the evolving needs of modern portable electronics. This product ensures that devices remain powered in the most efficient and protected manner possible, maintaining Texas Instruments' reputation for quality and performance in the electronics industry.
