Overview of Texas Instruments TPS2205IDBR

The Texas Instruments TPS2205IDBR is a state-of-the-art, dual-slot PC Card power-interface switch designed to manage power distribution from the host system to the PC Card slots. This integrated circuit (IC) is tailored for applications such as notebook computers, docking stations, and other systems that utilize PC Card technology.

Key Features

• Dual-Slot Support: The TPS2205IDBR is capable of supporting two independent PC Card slots, making it a versatile choice for systems that require multiple card interfaces.
• Integrated Switching: It includes built-in 0.1-Ohm high-side MOSFET switches, offering efficient power distribution with minimal voltage drop.
• Current Limiting: The device features programmable current limiting to protect the system against overcurrent conditions, ensuring safe operation for both the host and the cards.
• Thermal Protection: With thermal shutdown protection, the TPS2205IDBR automatically turns off if it exceeds the temperature threshold, preventing thermal damage.
• Smart Power Management: The IC provides smart power management features such as automatic low-power mode for power saving when the card slots are not in use.
• Voltage Flexibility: It operates over a wide input voltage range from 3V to 5.5V, accommodating various system power requirements.

Applications

The TPS2205IDBR is ideal for a variety of applications that require reliable and efficient power management for PC Cards. Its primary use cases include:

• Notebook and laptop computers
• Portable docking stations
• Industrial and medical equipment with PC Card interfaces

Quality and Reliability

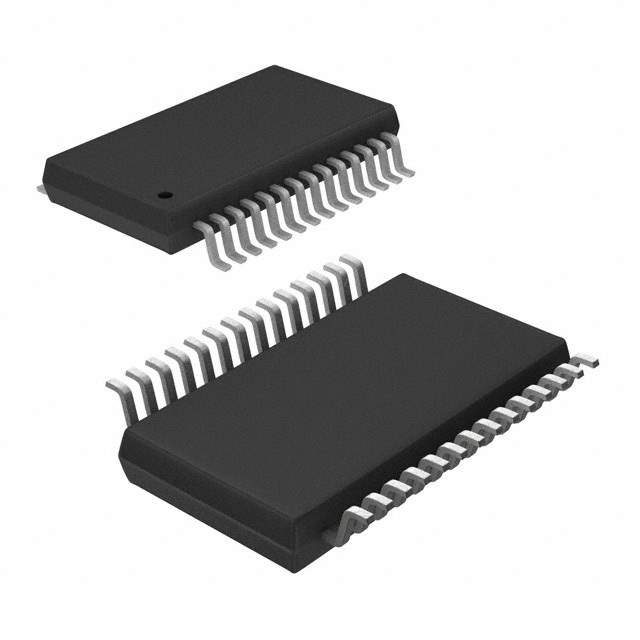

As with all Texas Instruments products, the TPS2205IDBR is manufactured to high standards of quality and reliability. It is available in a compact SSOP (Shrink Small Outline Package) that is suitable for space-constrained applications.

Ordering Information

The product is available under the part number TPS2205IDBR and can be ordered through Texas Instruments' official distributors. For detailed specifications, application notes, and support resources, please refer to the Texas Instruments website or contact their customer support.
