The TPS22921YFPR is a high-performance, compact load switch from Texas Instruments, designed to effectively manage power distribution in modern electronic systems. This advanced switch is part of TI's extensive power management portfolio and is engineered to provide a highly efficient solution for applications requiring power sequencing, controlled power-up, and reduced inrush current.

Key Features

• Ultra-Low On-Resistance: The TPS22921YFPR boasts an ultra-low on-resistance (R<sub>ON) of just 28 mΩ at a 5V gate drive, which minimizes power loss and improves overall efficiency.
• Input Voltage Range: It operates over a wide input voltage range of 1.05V to 5.5V, making it versatile for various applications, from low-voltage portable devices to higher-voltage digital circuits.
• Low Quiescent Current: The device features a low quiescent current of 1.7 µA, which helps to extend battery life in portable applications.
• Quick Output Discharge: An integrated quick output discharge transistor ensures rapid deactivation of the output, which is critical for applications that require immediate power-down scenarios.
• Controlled Slew Rate: The TPS22921YFPR provides a controlled slew rate to mitigate inrush current, which can be essential for preventing damage to sensitive components and maintaining system stability.

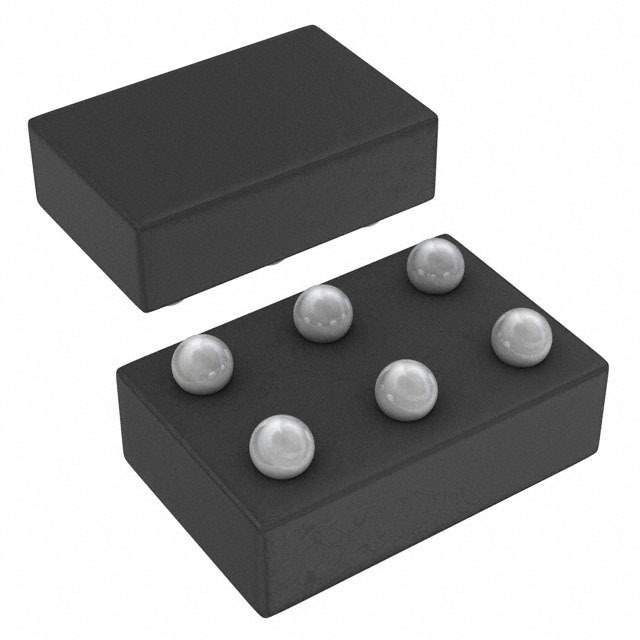

• Compact Package: Available in a small, space-saving 6-pin DSBGA package, this load switch is ideal for space-constrained applications.

Applications

The versatility of the TPS22921YFPR load switch makes it suitable for a broad range of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• Wearable Technology
• Power Management Modules
• SSD and Memory Cards
• Healthcare Devices

Conclusion

With its combination of low on-resistance, wide input voltage range, controlled slew rate, and quick output discharge, the TPS22921YFPR from Texas Instruments is an excellent choice for designers looking to enhance power efficiency and reliability in their electronic devices. Its small form factor further makes it an attractive option for applications where space is at a premium.
