The TPS22922BYFPR is a high-performance, ultra-low resistance load switch manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This compact, feature-rich component is designed to effectively manage power distribution in various electronic systems, from portable devices to larger-scale digital applications.

Key Features

• Ultra-Low On-Resistance: The TPS22922BYFPR boasts an exceptionally low on-resistance (R_ON) of only 28 mΩ at a 5V gate drive, which minimizes power loss and improves efficiency in power management.
• Input Voltage Range: This load switch operates over a wide input voltage range from 1.05V to 5.5V, making it suitable for a variety of low-voltage applications.
• Current Handling: The device can handle a continuous current of up to 2A, providing sufficient throughput for most small to medium power requirements.
• Quick Output Discharge: It includes an integrated quick output discharge transistor that ensures the output voltage falls rapidly when the switch is turned off, preventing any unwanted power residue in the subsequent circuitry.
• Controlled Slew Rate: The TPS22922BYFPR features a controlled slew rate to mitigate inrush current, thus enhancing system stability and reducing the likelihood of voltage droop.

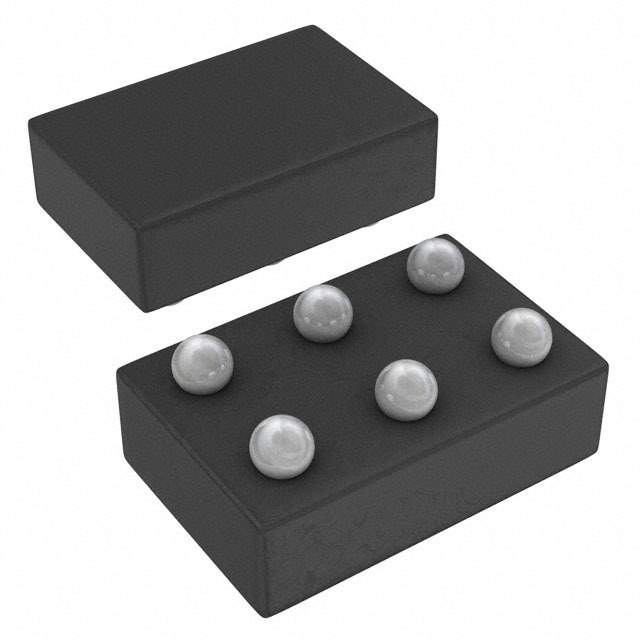

• Small Form Factor: Housed in a tiny 6-pin, 1.6 x 1.6mm Wafer Chip-Scale Package (WCSP), this load switch saves valuable board space in space-constrained applications.

Applications

The versatile nature of the TPS22922BYFPR makes it an ideal choice for a wide array of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• Wearable Technology
• GPS Devices
• Wireless and IoT Devices
• Power Supply Distribution Networks

Quality and Reliability

As with all Texas Instruments products, the TPS22922BYFPR is manufactured to the highest quality standards, ensuring reliable performance and longevity in your application. TI's commitment to excellence is reflected in the rigorous testing and quality control procedures that accompany the production of each component.
