The TPS22942DCKR is a state-of-the-art load switch developed by Texas Instruments, designed to provide a high level of performance in power management solutions. This compact and efficient device is an integral part of modern electronic systems, ensuring precise control over power distribution and consumption.

Key Features

• Ultra-Low On-Resistance: The TPS22942DCKR boasts an ultra-low on-resistance (RON) of 105 mOhm at a 5V supply voltage, which minimizes power loss and improves overall efficiency.
• Input Voltage Range: This load switch operates over an input voltage range of 1.6 V to 5.5 V, making it versatile for a wide array of applications, from battery-powered devices to industrial systems.
• Low Quiescent Current: It features a low quiescent current of only 0.5 µA (typical), ensuring minimal power consumption when the device is in standby mode.
• Controlled Slew Rate: The device has a built-in controlled slew rate to reduce inrush current, which can help prevent system voltage drops and protect downstream components.
• Quick Output Discharge Transistor: The TPS22942DCKR includes an integrated quick output discharge transistor (QOD), which allows the output to be discharged quickly when the switch is turned off, thereby preventing unwanted power residue in the system.

Applications

The TPS22942DCKR is suitable for a variety of applications, including but not limited to:

• Smartphones, Tablets, and Wearables
• Portable Electronics
• Power Management for Peripheral Ports
• Industrial and Medical Equipment

Package and Reliability

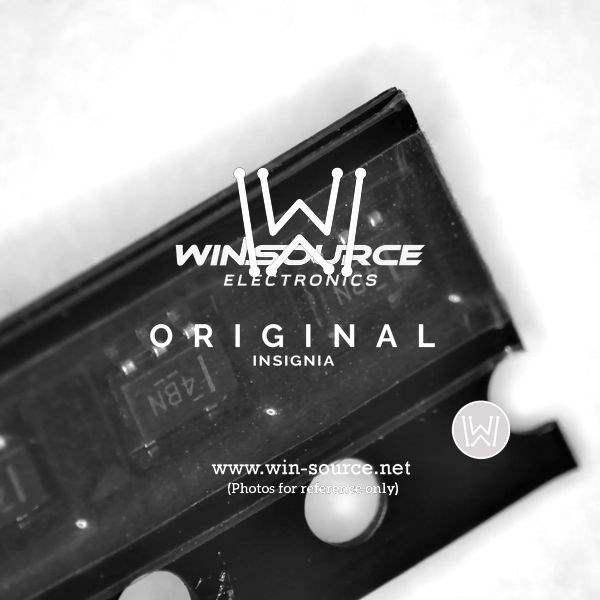

Encased in a compact 6-pin SC-70 package, the TPS22942DCKR is designed for space-constrained applications. Its small footprint does not compromise its performance or reliability. Texas Instruments ensures that this load switch meets rigorous quality standards, providing consistent and dependable operation across its lifespan.

Conclusion

The TPS22942DCKR from Texas Instruments is an excellent choice for designers looking for a high-performance, reliable load switch capable of managing power with precision. Its combination of low on-resistance, low quiescent current, and controlled slew rate makes it an essential component in the design of energy-efficient electronic systems.
