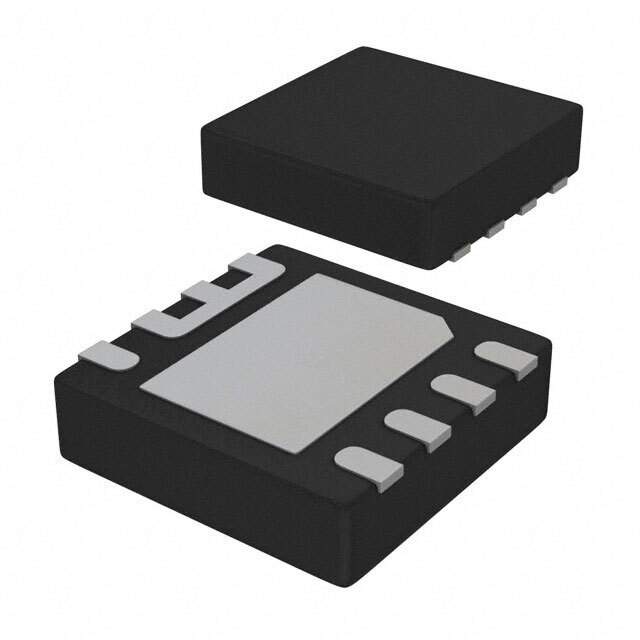

Product Overview: TPS22961DNYR by Texas Instruments

The TPS22961DNYR is a state-of-the-art load switch from Texas Instruments, designed to provide a high-efficiency power management solution for modern electronic devices. This compact, high-performance component is essential for applications requiring power distribution and control with minimal power loss.

Key Features

• Ultra-Low On-Resistance: The TPS22961DNYR boasts an ultra-low on-resistance (R<sub>ON) which significantly reduces power loss and improves overall efficiency during operation.
• Input Voltage Range: The device operates over a wide input voltage range from 1.05V to 5.5V, making it versatile for various applications from low-voltage portable electronics to higher-voltage digital systems.
• Current Handling: It can handle continuous currents up to 6A, making it suitable for high-power applications.
• Quick Output Discharge: The integrated quick output discharge transistor ensures that the output is discharged promptly when the switch is turned off, thereby protecting downstream components.
• Controlled Slew Rate: The TPS22961DNYR features a controlled slew rate to mitigate inrush current, which can be critical in preventing system voltage droops and ensuring stable operation.

Applications

This load switch is ideal for a wide range of applications, including but not limited to portable electronics, battery-powered devices, power distribution systems, and point-of-load (POL) modules. Its ability to efficiently manage power makes it a valuable component in smartphones, tablets, and other compact consumer electronics where space and power efficiency are paramount.

Quality and Reliability

Texas Instruments is known for its commitment to quality and the TPS22961DNYR is no exception. It is designed to meet the stringent requirements of modern electronics in terms of performance and reliability. The device is available in a compact, leaded package that ensures ease of integration into various circuit designs, while providing robust protection features such as over-temperature and short-circuit protection, enhancing system safety.
