Product Overview: TPS22968NQDMGTQ1 from Texas Instruments

The TPS22968NQDMGTQ1 is a state-of-the-art power management IC designed by Texas Instruments, specifically engineered to meet the rigorous demands of the automotive industry. This compact, high-efficiency device is a dual-channel load switch that provides power distribution control for advanced automotive applications.

Featuring an ultra-low on-resistance of just 8.7 mΩ at a 5V input, the TPS22968NQDMGTQ1 ensures minimal voltage drop and power loss, making it ideal for power-sensitive systems. Its dual channels can independently control two separate loads, which allows for flexible power management and distribution across various subsystems within a vehicle.

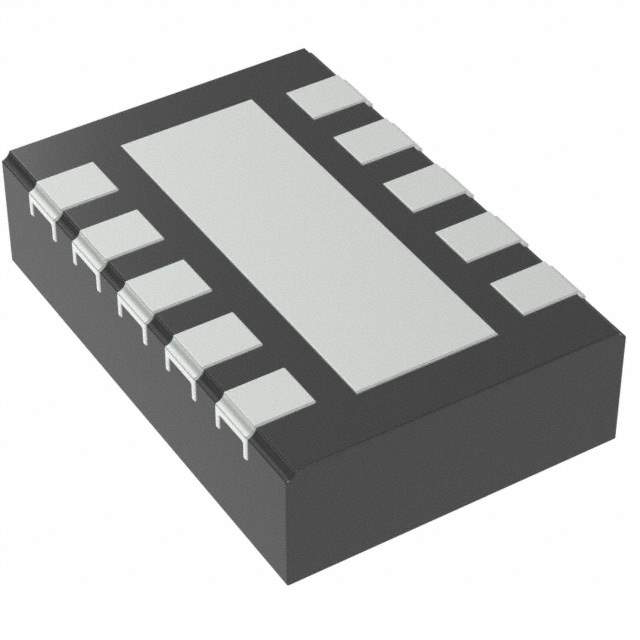

The device comes in a small, lead-free 12-pin X2SON package, making it suitable for space-constrained applications. Despite its diminutive size, it packs a robust set of features such as quick output discharge and an adjustable rise time to minimize inrush current, thereby preventing potential damage to sensitive electronic components.

Safety and reliability are paramount in automotive applications, and the TPS22968NQDMGTQ1 is designed with this in mind. It includes integrated protection features such as over-current, over-voltage, under-voltage lockout, and thermal shutdown. These protections ensure the device operates within safe parameters, safeguarding both the load switch and the downstream components it controls.

With an operational temperature range of -40°C to 125°C, the TPS22968NQDMGTQ1 is built to withstand harsh automotive environments. It is AEC-Q100 qualified, which is a testament to its reliability and performance under extreme conditions. This load switch is an ideal solution for power distribution in infotainment systems, ADAS, body control modules, and other automotive applications that require precise power control and distribution.

In summary, the TPS22968NQDMGTQ1 from Texas Instruments is a versatile and efficient solution for automotive power management, offering high reliability, advanced protection features, and a compact form factor. Its robust design and comprehensive feature set ensure optimal performance in a wide range of automotive applications.
