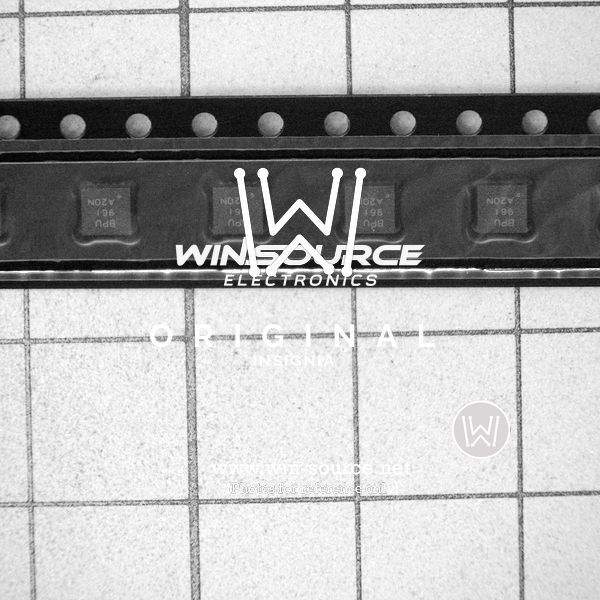

Product Overview: TPS2554DRCR by Texas Instruments

The TPS2554DRCR is a highly integrated, precision adjustable current-limited power-distribution switch from Texas Instruments, designed to cater to USB applications and other systems requiring power distribution and overcurrent protection. This advanced component is housed in a compact QFN-10 package and is part of TI's extensive power management portfolio.

Key Features

• Precision Current Limiting: The TPS2554DRCR offers an accurate current limit threshold, ensuring protection for sensitive components by preventing excessive current from flowing through the system.
• Adjustable Current Limit: Users have the flexibility to set the current limit threshold to meet the requirements of their specific application, providing a customizable level of protection.
• Fast Overcurrent Response: With a quick response to overcurrent conditions, this device helps to prevent potential damage to downstream components by promptly shutting down the output.
• Reverse Current Blocking: This feature prevents current from flowing backward into the switch when it is powered down, safeguarding the system against potential issues caused by reverse currents.
• Thermal Shutdown Protection: The TPS2554DRCR is equipped with thermal shutdown protection that disables the power switch during over-temperature conditions, ensuring the safety and longevity of the device.

Applications

• USB-powered devices
• Portable consumer electronics
• Power supply distribution and management
• Hot-swap and hot-plug power applications

With its robust feature set, the TPS2554DRCR is ideal for a variety of applications where precise power control and protection are paramount. Its ability to finely tune the current limit threshold, combined with fast overcurrent response and thermal protection, makes it a reliable choice for designers looking to enhance their power management systems. The compact footprint of the QFN-10 package also allows for a space-efficient design, making it suitable for portable and space-constrained applications.

Overall, the TPS2554DRCR by Texas Instruments represents a sophisticated solution for modern electronic systems that demand precise power distribution control and advanced safety features.
