Overview of TPS26601RHFT High-Voltage Industrial eFuses

The TPS26601RHFT from Texas Instruments is a robust, high-voltage industrial eFuse designed to provide advanced protection for electronic systems. This integrated circuit is engineered to safeguard against overcurrent, short circuits, inrush current, and overvoltage, making it an essential component for industrial applications that demand reliability and safety.

Key Features

• Wide Operating Voltage Range: The TPS26601RHFT operates over a broad input voltage range of 4.5V to 60V, accommodating a variety of industrial power supplies and ensuring compatibility with numerous applications.
• Adjustable Current-Limit: Users can set the current limit threshold via an external resistor, providing flexibility to tailor the protection to specific system requirements.
• Fast Short-Circuit Response: The device offers a rapid response to short-circuit conditions, minimizing the risk of damage to the protected load and surrounding components.
• Overvoltage Protection: It includes overvoltage protection that clamps the output, preventing high voltage spikes from affecting downstream components.
• Thermal Shutdown: The thermal shutdown feature ensures the device operates within a safe temperature range, providing additional protection against overheating.
• Reverse Polarity Protection: This eFuse is equipped with reverse polarity protection, safeguarding the system against potential damage due to incorrect power supply connections.

Applications

The TPS26601RHFT is ideal for a wide range of industrial applications, including:

• Factory automation and control systems
• Programmable logic controllers (PLCs)
• Industrial power supplies and distribution systems
• Heavy machinery and equipment
• LED lighting systems

Product Quality and Reliability

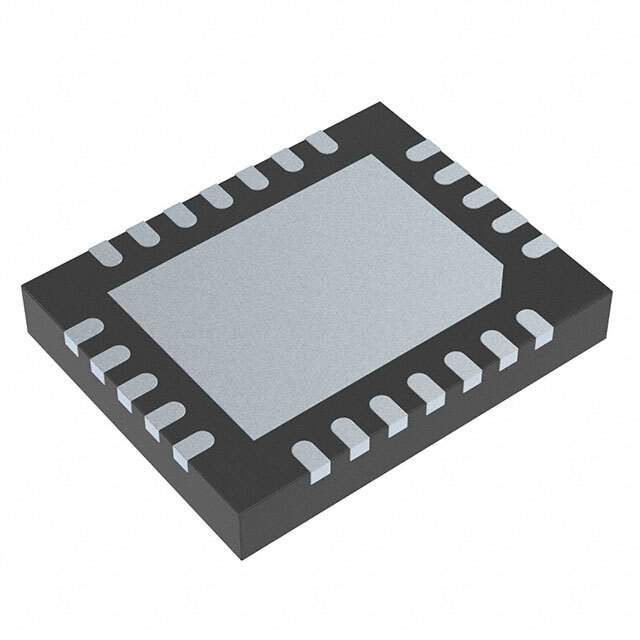

Encased in a compact VQFN package, the TPS26601RHFT is designed to meet the rigorous demands of industrial environments. Texas Instruments' commitment to quality ensures that this eFuse provides reliable circuit protection, with a focus on performance and long-term durability. Whether it's for critical industrial systems or general-purpose applications, the TPS26601RHFT stands as a testament to Texas Instruments' expertise in power management solutions.
