Overview of Texas Instruments TPS259520DSGR

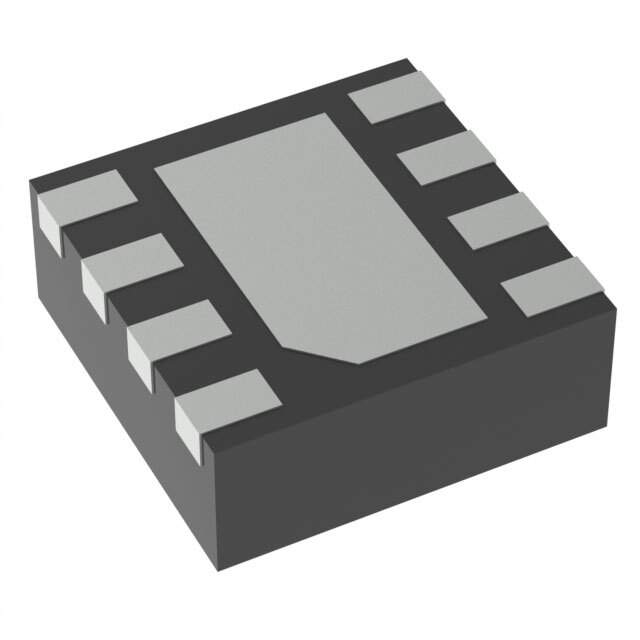

The TPS259520DSGR from Texas Instruments is an advanced circuit protection and power management device that offers a versatile solution for a variety of applications. This compact, integrated circuit is designed to enhance system reliability through features such as overvoltage protection (OVP), overcurrent protection (OCP), and thermal shutdown. It is housed in a small 8-pin DSG (WSON) package, making it suitable for space-constrained designs.

Key Features

• Adjustable Overvoltage Protection: The TPS259520DSGR allows users to set the overvoltage protection threshold, ensuring sensitive components are safeguarded from voltage spikes.
• Programmable Overcurrent Protection: With its programmable current limit, the device can prevent excessive current from damaging the system or causing a safety hazard.
• Quick Output Discharge: The integrated quick output discharge transistor ensures a rapid power-off sequence, protecting downstream circuits.
• Thermal Shutdown: An in-built thermal shutdown feature provides additional protection by turning off the device if it exceeds a certain temperature threshold.
• Robust Surge Protection: The device is capable of withstanding industrial surge requirements, ensuring durability and longevity in harsh environments.

Applications

The versatile nature of the TPS259520DSGR makes it suitable for a wide range of applications, including:

• Enterprise and Server Systems
• Telecommunications Equipment
• Power Supplies and Adapters
• Consumer Electronics
• Industrial Controls and Automation

Technical Specifications

• Package Type: 8-pin DSG (WSON)
• Operating Temperature Range: -40°C to 125°C
• Input Voltage Range: 2.7V to 18V
• Continuous Current Rating: Up to 5A

With its advanced protection features and compact design, the Texas Instruments TPS259520DSGR is an excellent choice for designers looking to enhance system safety and reliability without compromising on space or performance.
