Introducing the TPS40075RHLR PWM Controller by Texas Instruments

The TPS40075RHLR is a high-performance, mid-voltage, synchronous buck PWM controller designed by Texas Instruments, a leader in semiconductor solutions. This advanced controller is tailored for creating highly efficient, fast-response power supplies in a compact form factor. The TPS40075RHLR is a perfect choice for a wide range of applications, including computing systems, networking equipment, and industrial applications.

Key Features

• Adjustable Switching Frequency: The TPS40075RHLR allows users to set the switching frequency anywhere from 100 kHz to 600 kHz, providing flexibility in balancing efficiency and component size.
• Synchronous Buck Control: As a synchronous buck controller, it supports the use of low RDS(on) MOSFETs, which helps to minimize power loss and improve overall efficiency.
• Wide Input Voltage Range: Catering to a variety of power sources, the device operates over a wide input voltage range from 4.5V to 28V, making it versatile for different system designs.
• Programmable Soft-Start: The TPS40075RHLR includes a programmable soft-start feature to reduce inrush current during startup, enhancing system reliability.
• High Efficiency: With its advanced control features, this controller achieves high efficiency, which is critical for reducing heat and improving system performance.

Protection Features

• Overcurrent Protection: The device incorporates an overcurrent protection scheme to safeguard the power supply and load from damage due to excessive current.
• Thermal Shutdown: Built-in thermal shutdown functionality ensures the controller turns off if it exceeds a specific temperature threshold, preventing overheating.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures the controller operates only when the input voltage is within a safe range.

Package and Availability

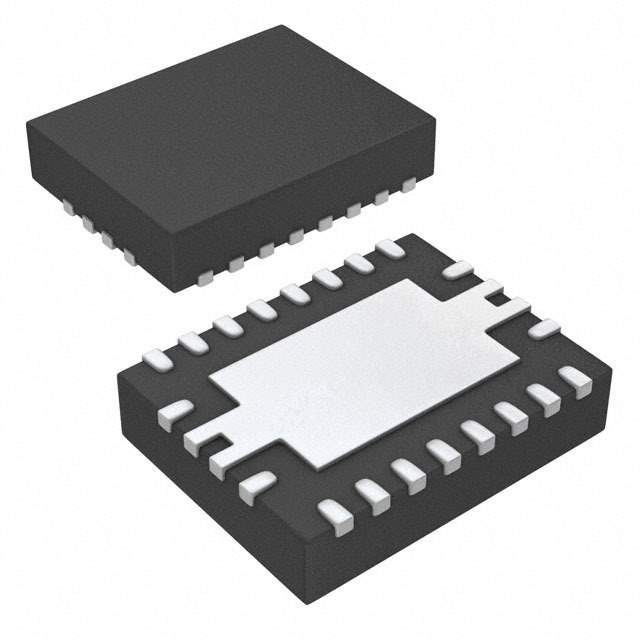

The TPS40075RHLR comes in a compact 20-pin QFN package, optimized for space-constrained applications. Its small footprint does not compromise its performance or capability, making it an excellent choice for sleek and efficient power supply designs. Texas Instruments ensures availability and support for this controller, providing detailed technical documentation and application notes to facilitate design and implementation.

With its combination of efficiency, flexibility, and protection features, the TPS40075RHLR from Texas Instruments stands out as a robust solution for modern power management challenges.
