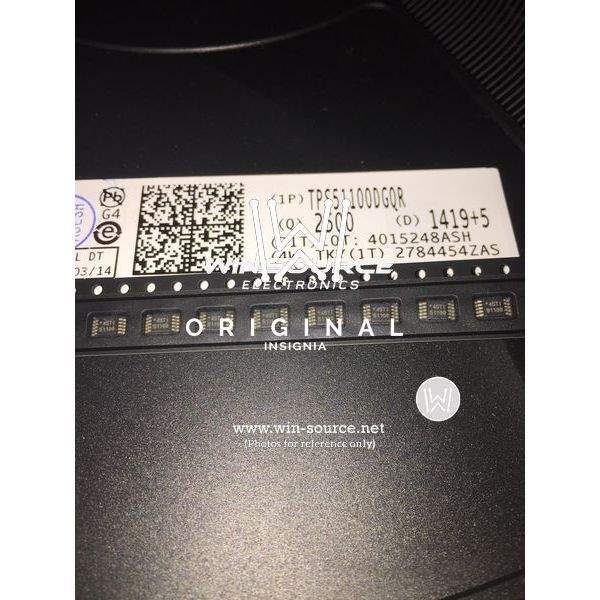

The TPS51100DGQRG4 is a high-performance, sink/source double data rate (DDR) termination regulator specifically designed for low-input voltage, low-cost, low-noise systems where space is a key consideration. Manufactured by Texas Instruments, this regulator is an optimal solution for a variety of applications, particularly in the computing and server markets.

Key Features

• Voltage Range: The TPS51100DGQRG4 operates over a wide range of input voltages, from 1.1V to 3.5V, making it versatile for various DDR memory systems.
• Sink/Source Capability: It can provide a continuous sink/source current of up to 3A, which is essential for maintaining the stability of the DDR memory bus during periods of transient activity.
• High Accuracy: The regulator maintains a high accuracy of VTT and VTTREF voltages, which are critical for ensuring the integrity of data transmitted over the memory bus.
• Low Power Consumption: The TPS51100DGQRG4 is designed for efficiency, with a low quiescent current that reduces power consumption and extends battery life in portable applications.
• Thermal Protection: Integrated thermal shutdown protection safeguards the device from potential damage due to overheating.

Applications

The TPS51100DGQRG4 is suitable for a broad range of applications that require DDR termination voltage solutions. These include:

• Notebook and desktop computers
• Graphics cards
• Memory modules and servers
• Embedded systems

Package and Quality

The device is offered in a compact 10-pin MSOP PowerPAD package, which is ideal for space-constrained applications. Texas Instruments ensures high-quality standards, and the TPS51100DGQRG4 is designed to meet rigorous industrial performance criteria.

Conclusion

The TPS51100DGQRG4 from Texas Instruments stands out as an efficient, reliable solution for DDR memory power termination. With its comprehensive feature set and flexible applications, this regulator is an excellent choice for designers looking to optimize their memory power management systems.
