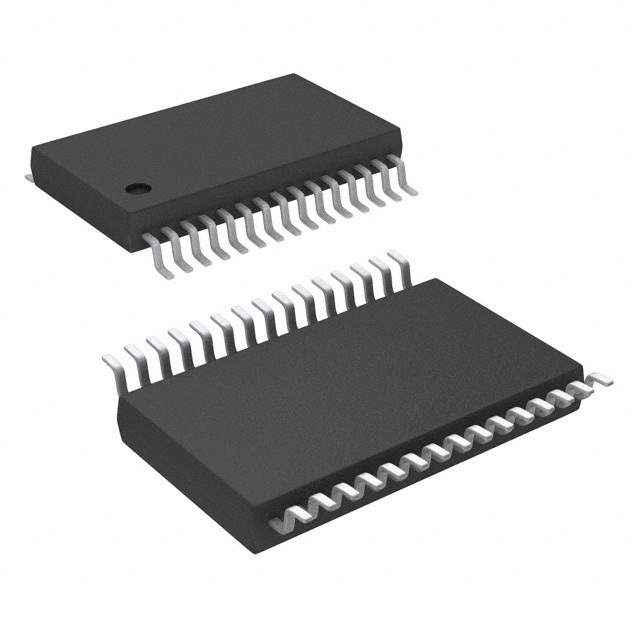

TPS5120QDBTREP

Part No TPS5120QDBTREP
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description DUAL OUTPUT, TWO-PHASE SYNCHRONOUS BUCK DC/DC CONTROLLER | IC REG CTRLR BUCK 30TSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel
Output Type Transistor Driver
Function Step-Down
Topology Buck
Number of Outputs 2
Output Phases 2
Supply Voltage 4.5V ~ 28V
Switching Frequency 300kHz
Duty Cycle (Maximum) 83%
Synchronous Rectifier Yes
Clock Sync No
Control Features Enable, Power Good, Soft Start
Temperature Range - Operating -40°C ~ 125°C
Manufacturer Package 30-TFSOP
Supplier Device Package 30-TSSOP
Family Part Number TPS5120
Manufacturer Pack Quantity 1
MSL Level 2 (1 Year)
Win Source Part Number 1272507-TPS5120QDBTREP
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TPS5120QDBTREP CAD Model

Description

Product Overview: TPS5120QDBTREP from Texas Instruments

The TPS5120QDBTREP is a high-performance, dual-channel, synchronous buck controller designed by Texas Instruments specifically for precision voltage regulation in a wide array of electronic applications. This component is part of Texas Instruments' portfolio of enhanced products that are optimized for operation in harsh environments, making it suitable for use in industrial, automotive, and military applications where reliability and robustness are critical.

Key Features and Benefits

  • Input Voltage Range: The TPS5120QDBTREP operates with an input voltage range from 5.5 V to 28 V, accommodating various power sources and ensuring flexibility in system design.
  • Dual Output Channels: It features two independent output channels that enable the controller to manage dual power rails simultaneously, providing efficient power distribution and management.
  • Adjustable Switching Frequency: The device allows for an adjustable switching frequency up to 700 kHz, which can be optimized for efficiency or component size depending on the application needs.
  • Synchronous Rectification: Synchronous rectification enhances efficiency by reducing power loss during the switching process, thereby improving overall system performance and reducing heat generation.
  • Thermal and Overcurrent Protection: Built-in thermal shutdown and overcurrent protection features safeguard the system from damage due to excessive heat or current conditions, enhancing the product’s reliability and lifespan.
  • Enhanced Product: As a part of Texas Instruments' enhanced product lineup, the TPS5120QDBTREP is designed to meet the stringent requirements of extended temperature ranges and long-term reliability, making it ideal for demanding applications.

Applications

The versatility and robustness of the TPS5120QDBTREP make it an excellent choice for powering complex systems within:

  • Automotive electronics
  • Industrial control systems
  • Telecommunications infrastructure
  • Military and aerospace applications

With its precision voltage regulation, the TPS5120QDBTREP ensures stable and reliable power delivery to critical components, such as microprocessors, FPGAs, and DSPs, which require consistent voltage levels for optimal performance.

Package and Availability

The TPS5120QDBTREP is available in a compact 30-pin TSSOP (DBT) package, providing a space-saving solution for densely packed PCBs. Its enhanced product status ensures availability and support for applications with extended lifecycle requirements.

For detailed technical specifications, application notes, and support resources, visit the Texas Instruments product page.
