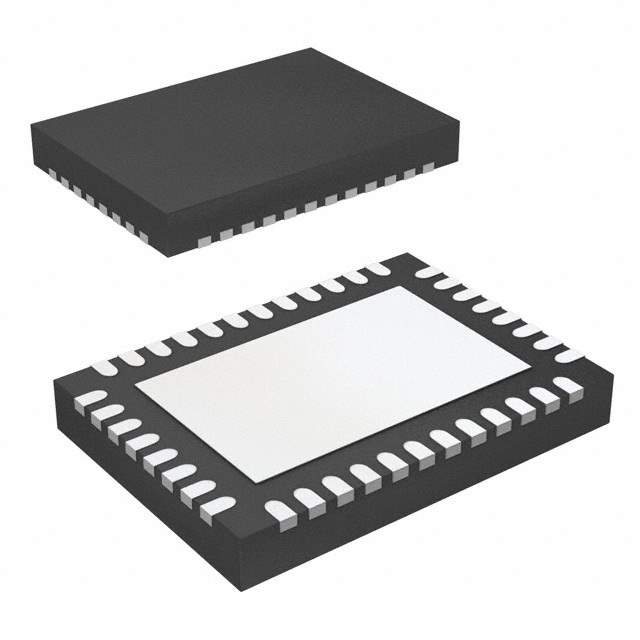

Overview of Texas Instruments TPS51315RGFR

The Texas Instruments TPS51315RGFR is a highly integrated, low-voltage, single-buck power stage module designed for space-constrained and power-dense applications. It combines a high-performance step-down converter with power MOSFETs, a shielded inductor, and passives into a small, QFN package. This integration facilitates fast and easy implementation, making it an ideal solution for a wide range of systems, including telecommunications, networking, and storage systems, as well as point-of-load (POL) applications.

Key Features

• High-Efficiency Power Conversion: The TPS51315RGFR is capable of delivering high efficiency across a wide load range, thanks to its advanced MOSFET technology and optimized switching characteristics.
• Compact QFN Package: With a compact 3.5mm x 3.5mm QFN package, the device helps in reducing the overall footprint on the PCB, making it suitable for space-constrained applications.
• Integrated Inductor: The inclusion of an integrated shielded inductor simplifies layout and reduces external component count, which can enhance performance and reduce electromagnetic interference (EMI).
• Adjustable Output Voltage: The output voltage can be precisely adjusted to meet the specific requirements of the application, ensuring compatibility with a variety of ICs and systems.
• Thermal Protection: The TPS51315RGFR is equipped with thermal shutdown protection, which helps to prevent damage to the device and the system under high temperature conditions.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the device operates only when the input voltage is within its specified range, protecting downstream components.

Applications

The versatility of the TPS51315RGFR makes it a suitable choice for a myriad of applications including, but not limited to:

• Server and Storage Systems
• Networking Equipment
• Telecommunications Infrastructure
• Point-of-Load (POL) Solutions
• FPGAs, DSPs, and ASIC Power Supplies

Conclusion

With its advanced features and compact design, the Texas Instruments TPS51315RGFR offers a robust and efficient power management solution for engineers looking to optimize their power supply design in terms of performance, space, and reliability. Whether for industrial, commercial, or communication applications, this integrated buck module is engineered to meet the rigorous demands of today's high-performance electronics.
