Overview of Texas Instruments TPS54060ADGQR

The Texas Instruments TPS54060ADGQR is a highly efficient, eco-friendly, and versatile step-down (buck) converter that is designed to meet the power management needs of a wide array of applications. This compact integrated circuit (IC) is capable of converting a higher DC input voltage into a lower DC output voltage with minimal power loss, making it an ideal solution for battery-powered devices, industrial systems, and portable electronics.

Key Features

• Wide Input Voltage Range: The TPS54060ADGQR operates with an input voltage range from 3.5V to 60V, accommodating a broad spectrum of power sources.
• Adjustable Output Voltage: It delivers an adjustable output voltage that can be set from 0.9V to 90% of the input voltage, providing flexibility for various design requirements.
• High Efficiency: With its integrated 100 mOhm high-side MOSFET, the device ensures high efficiency at light loads through a pulse skipping Eco-mode™, which significantly reduces the operating current during light load conditions.
• Thermal Protection: The TPS54060ADGQR is equipped with thermal shutdown and overcurrent protection, safeguarding the device and the system from potential damage due to overheating or excessive current conditions.

Applications

The versatility of the TPS54060ADGQR makes it suitable for a variety of applications, including:

• Consumer Electronics
• Industrial Power Systems
• Point of Load Conversions
• Telecommunications Equipment
• Automotive Systems

Package and Reliability

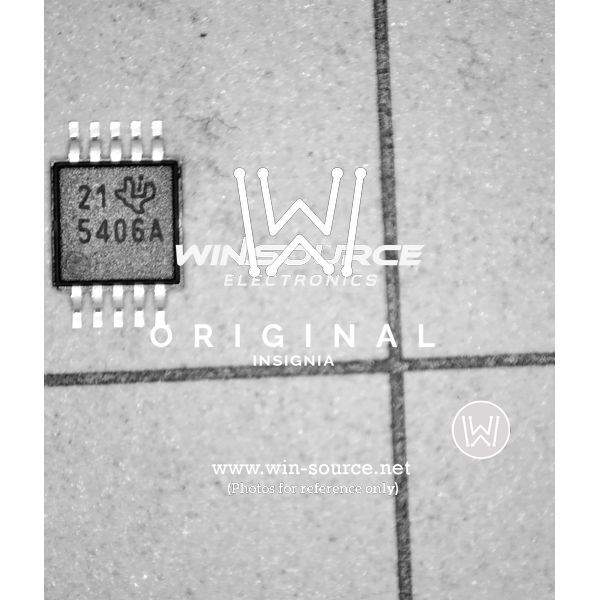

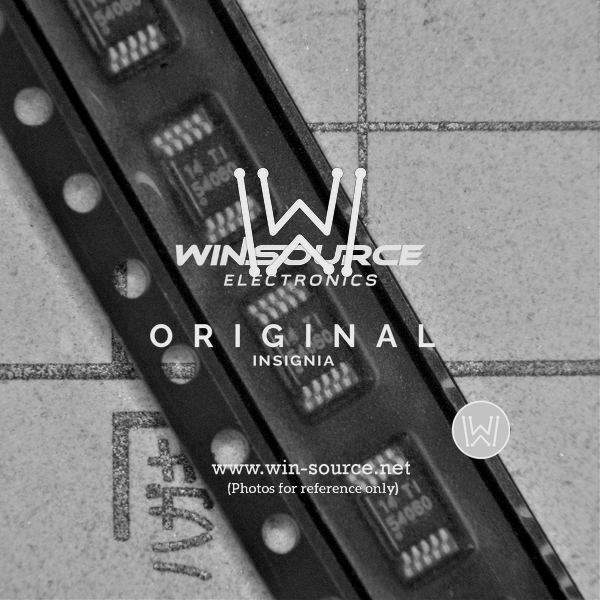

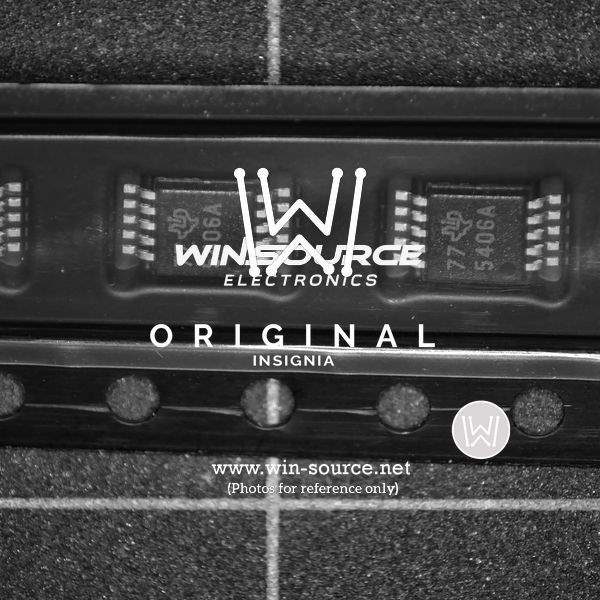

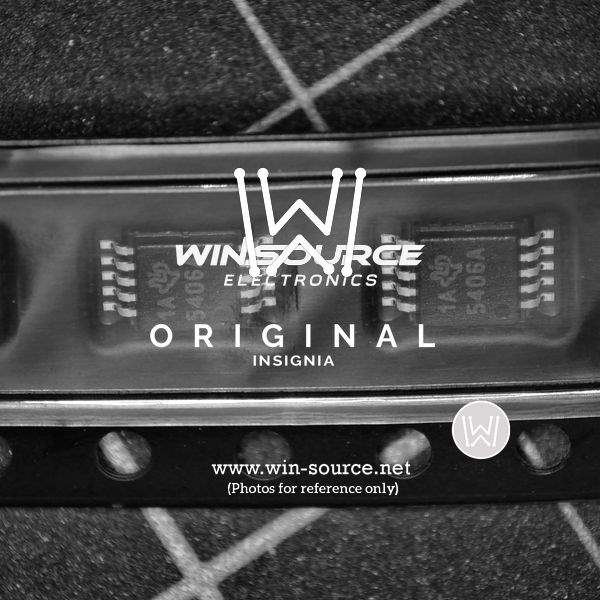

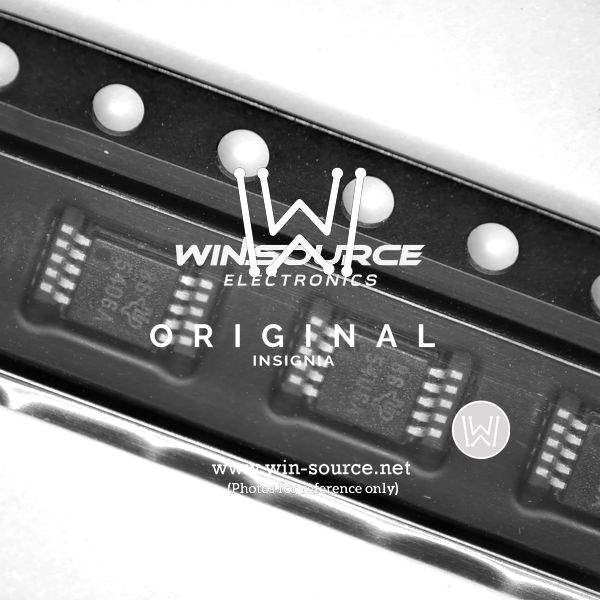

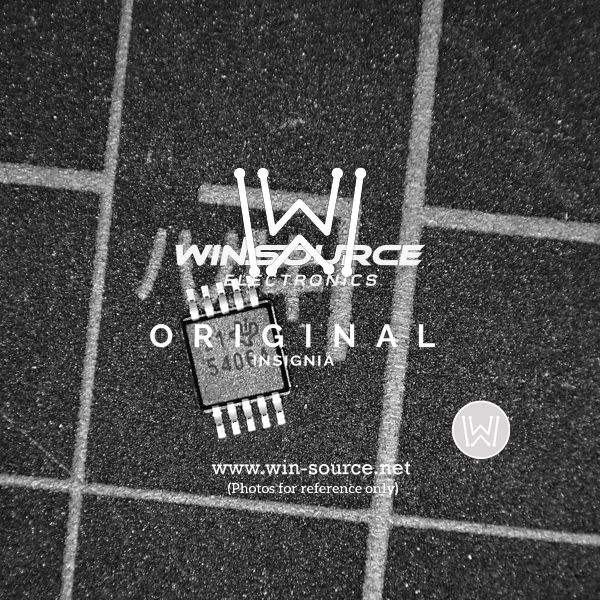

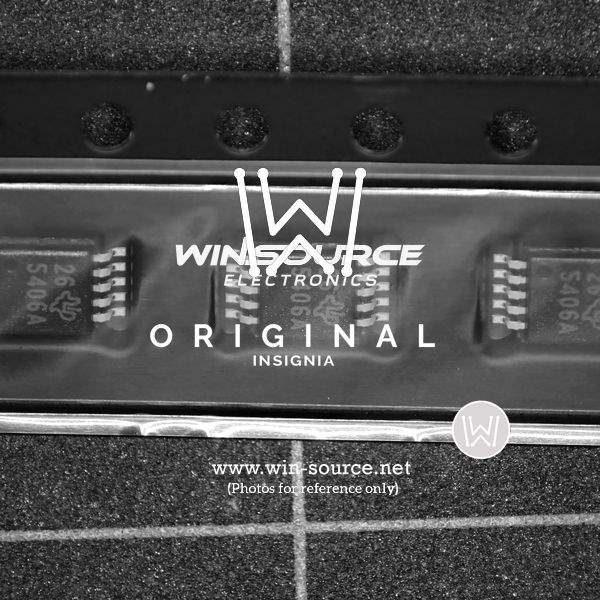

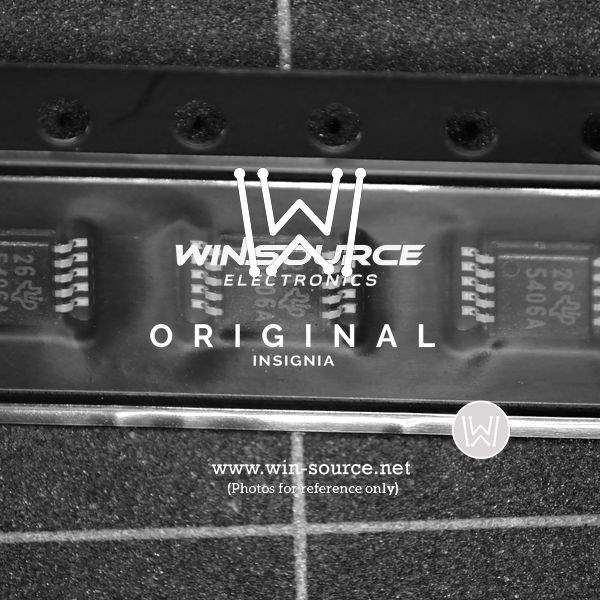

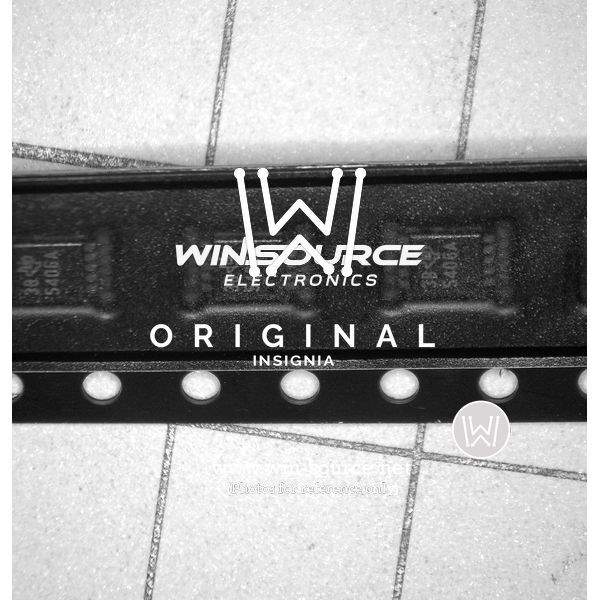

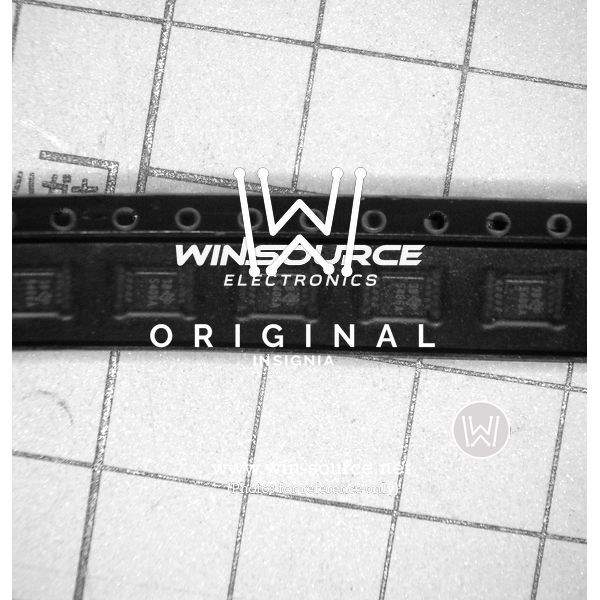

The TPS54060ADGQR is offered in a small, thermally enhanced 10-pin MSOP PowerPAD™ package that ensures a compact footprint while providing improved thermal performance. Texas Instruments' commitment to quality means that this buck converter is designed for reliability, with a temperature range of -40°C to 150°C, making it suitable for demanding environments.

For engineers and designers looking for a reliable, efficient, and adjustable voltage regulator solution, the TPS54060ADGQR from Texas Instruments stands out as a smart choice that combines performance with practicality.
