Product Overview: TPS54122RHLR from Texas Instruments

The TPS54122RHLR is a highly integrated and efficient solution from Texas Instruments, designed for power management applications. This advanced converter is part of the Swifty™ converter family and is known for its exceptional performance in converting a higher voltage input to a lower voltage output with excellent power efficiency. The TPS54122RHLR is particularly suitable for systems that require a compact power supply design with minimal external components.

Key Features

• Input Voltage Range: The device supports a wide input voltage range from 4.5V to 17V, making it versatile for various applications.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.6V to 5.5V to meet the requirements of different loads.
• High Efficiency: With its integrated MOSFETs, the TPS54122RHLR achieves high efficiency, which helps in reducing heat dissipation and improving system reliability.
• Integrated Features: The device includes a soft start function, precision enable, and power good output, which simplify system design and improve performance.
• Thermal and Over-Current Protection: Built-in thermal shutdown and over-current protection mechanisms ensure the longevity and safe operation of the device under various conditions.

Applications

The TPS54122RHLR is ideal for a range of applications, including:

• Point of Load (POL) power supplies
• Networking, telecom, and computing systems
• FPGAs, DSPs, and microprocessor power supplies
• Industrial and automotive applications

Package and Quality

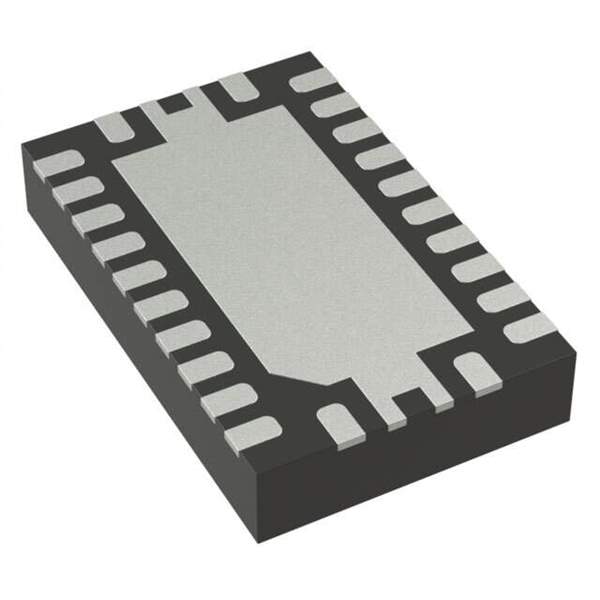

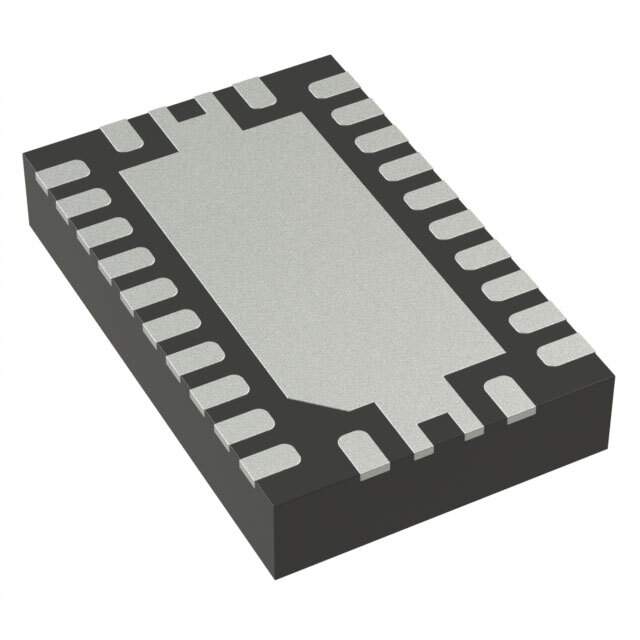

The TPS54122RHLR is offered in a compact 14-pin VQFN (RHL) package, which is optimized for space-constrained applications. Texas Instruments ensures high-quality standards, and the product is designed to meet or exceed industry reliability expectations. With its robust design and advanced features, the TPS54122RHLR is a reliable choice for designers looking to optimize their power supply solutions.
