Product Overview: TPS54140DGQRG4

The TPS54140DGQRG4 is a highly efficient, monolithic synchronous step-down DC-DC converter brought to you by Texas Instruments. Designed for a wide range of applications, this power management integrated circuit (IC) is capable of delivering a continuous 1.5 A of output current to loads with input voltage ranging from 3.5 V to 42 V, making it an ideal choice for systems operating from standard 5V, 12V, or 24V rails.

One of the standout features of the TPS54140DGQRG4 is its ability to maintain a high level of efficiency over a wide load range through its use of pulse width modulation (PWM) at moderate to heavy loads and transitioning to pulse frequency modulation (PFM) at light loads. This ensures energy-efficient operation without sacrificing performance, which is crucial for battery-powered and energy-sensitive applications.

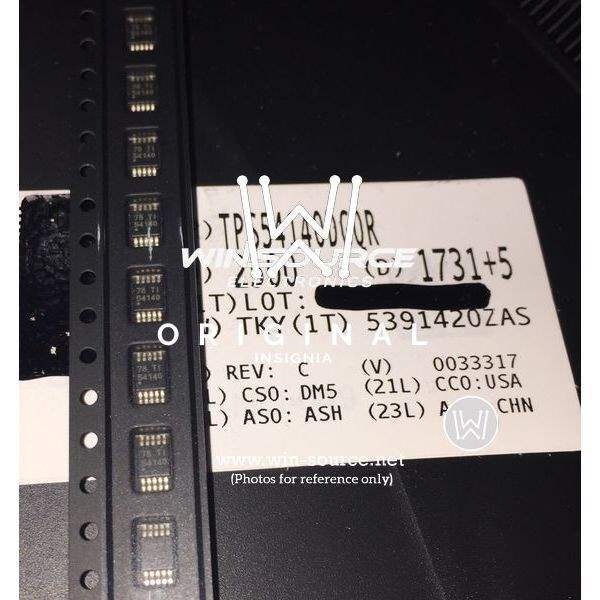

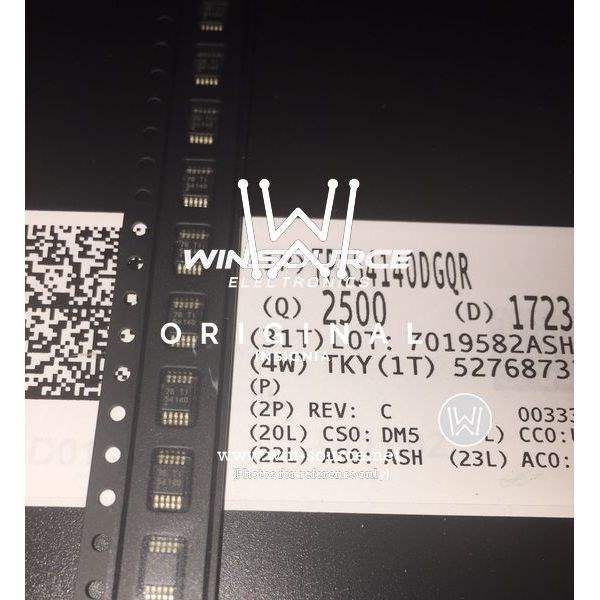

The device comes in a compact 10-pin MSOP PowerPAD™ package that is highly suitable for space-constrained applications. The TPS54140DGQRG4 offers a host of protective features to ensure the longevity and reliability of your designs, including overcurrent protection, thermal shutdown, undervoltage lockout, and slow start-up functionality. These features safeguard your system against a variety of common electrical issues that can arise during operation.

With an adjustable switching frequency ranging from 100 kHz to 2.5 MHz, the TPS54140DGQRG4 allows designers to optimize the size and efficiency of their power supply designs. This flexibility in frequency selection can be used to avoid critical system frequencies or to use smaller external components, thereby reducing the overall solution size and cost.

Whether you are designing consumer electronics, automotive systems, industrial controls, or any application that demands a compact, efficient, and reliable power supply solution, the TPS54140DGQRG4 from Texas Instruments is an excellent choice to meet your needs. Its robust design and comprehensive feature set ensure that you can develop high-performance products with confidence.

In summary, the TPS54140DGQRG4 is a versatile, efficient, and reliable step-down converter that exemplifies Texas Instruments' commitment to providing advanced power management solutions for a wide array of electronic applications.
