The TPS549A20RVET by Texas Instruments is a high-performance, synchronous buck converter that belongs to the SWIFT™ family of products. This voltage regulator integrates low R<sub>DS(on) MOSFETs, which provides excellent power conversion efficiency and reduced component footprint on the PCB.

Key Features

• Input Voltage Range: The device operates with an input voltage range of 2.95V to 6V, making it versatile for a variety of applications.
• Output Voltage Range: It supports an adjustable output voltage range from 0.6V to 5.5V, allowing for flexibility in targeting various system voltages.
• High Efficiency: The TPS549A20RVET offers high efficiency with its integrated FETs and advanced control architecture.
• Current Rating: The device is capable of delivering up to 20A of continuous output current, catering to high-power applications.

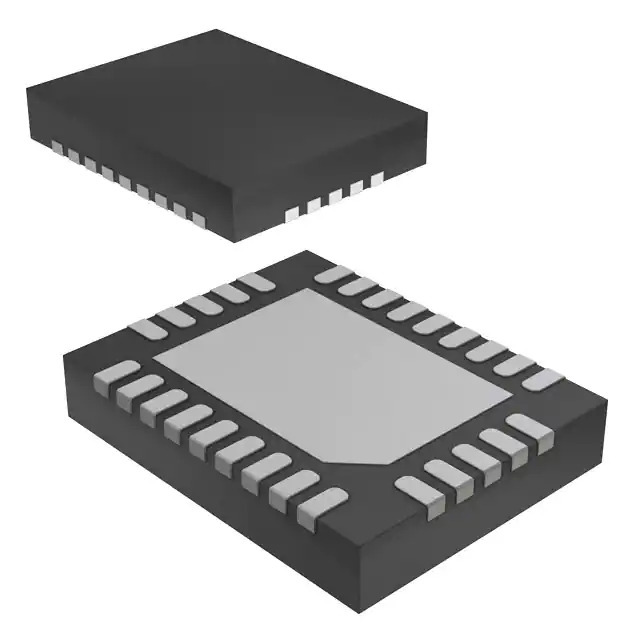

• Thermal Performance: Enhanced thermal performance is achieved through the use of a 3.5mm x 3.5mm QFN package, which aids in heat dissipation.
• Control Modes: It features both D-CAP3™ and D-CAP2™ fast transient response modes, ensuring stable operation during load transients.
• Protection Features: The converter includes a suite of protection features such as overcurrent, overvoltage, undervoltage, and thermal shutdown to ensure safe operation under abnormal conditions.

Applications

The TPS549A20RVET is suitable for a wide range of applications, including but not limited to:

• Telecommunications equipment
• Networking equipment such as routers and switches
• Enterprise servers and storage systems
• Computing infrastructure
• Point-of-load (POL) power supplies

Product Summary

The Texas Instruments TPS549A20RVET is a compact, efficient, and reliable solution for applications requiring high current and adjustable output voltages. Its integration of advanced features and protection mechanisms makes it a robust choice for powering the next generation of electronic devices.
