The TPS560430XFDBVR is a highly efficient, small-sized, monolithic synchronous buck converter from Texas Instruments designed for a wide range of applications. Its compact form factor and high performance make it an ideal choice for space-constrained and power-sensitive applications across various industries.

Key Features:

• Output Voltage Range: The device offers an adjustable output voltage range from 0.6 V to 17 V, which is suitable for powering a diverse array of low-voltage ICs and microprocessors.
• Input Voltage Range: It supports a wide input voltage range from 4.5 V to 17 V, making it versatile for use in systems with varying power supplies.
• Current Capability: The TPS560430XFDBVR can deliver up to 0.6 A of continuous output current, which is sufficient for many small scale power needs.
• High Efficiency: With its synchronous step-down (buck) regulator topology, it achieves high power conversion efficiency, which minimizes energy loss and heat generation.
• Frequency Synchronization: The switching frequency is fixed at 1.5 MHz, allowing for the use of small surface-mount inductors and capacitors, thereby reducing the overall solution size.
• Thermal Protection: The device includes thermal shutdown protection that helps prevent damage from overheating, enhancing system reliability.

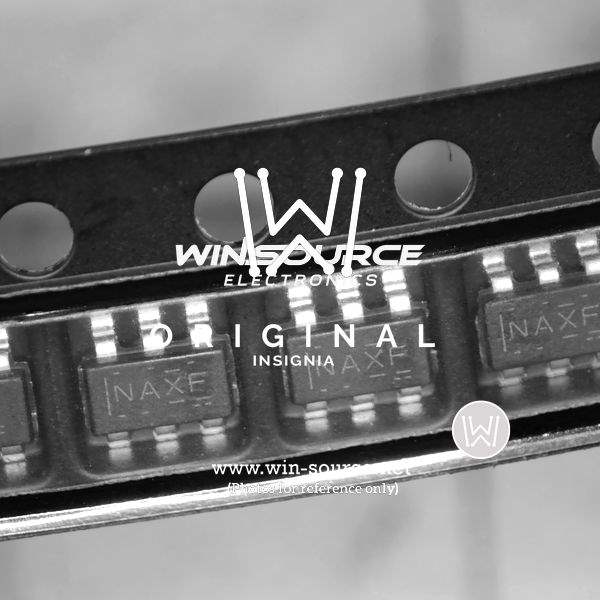

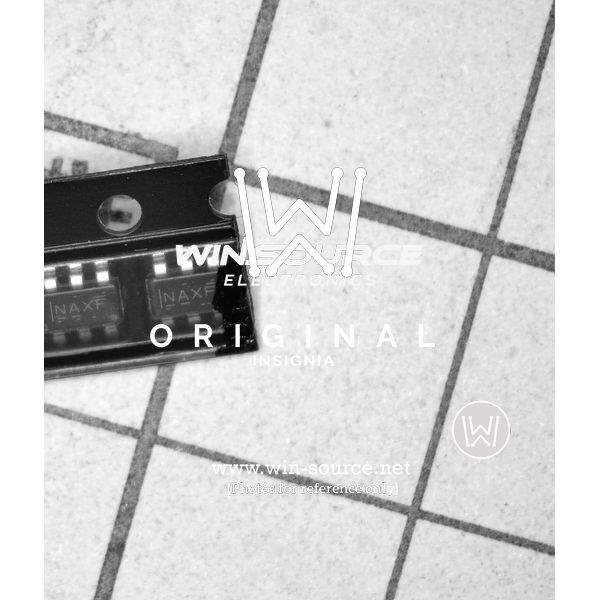

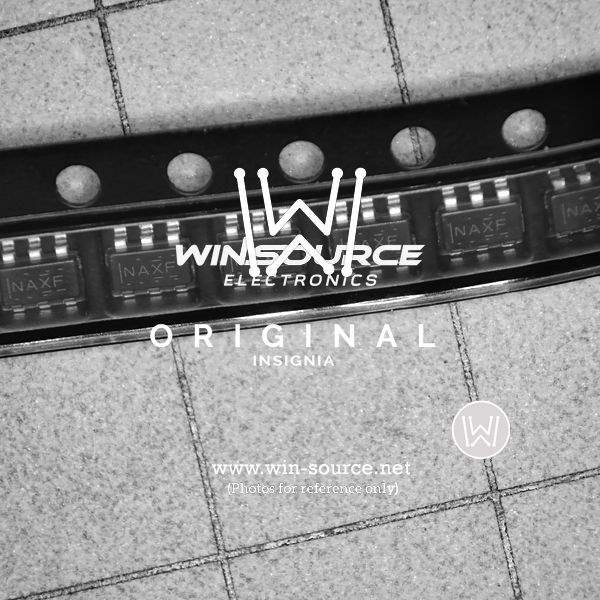

• Package: It comes in a small 6-pin SOT-23 package, which is ideal for space-constrained applications.

Applications:

The TPS560430XFDBVR is suitable for a variety of applications, including but not limited to:

• Consumer Electronics
• Wireless Communication Systems
• Power Supply Modules
• Portable and Battery-Powered Devices
• Networking Equipment

In summary, the TPS560430XFDBVR from Texas Instruments is a versatile, efficient, and compact buck converter that offers a reliable power solution for a wide range of electronic devices and systems. Its combination of features and size makes it a popular choice among engineers and designers for integrating into their power management designs.
