Product Overview: Texas Instruments TPS60150DRVR

The TPS60150DRVR from Texas Instruments is a high-performance, regulated charge pump that delivers a fixed output voltage with high efficiency. This component is designed for portable applications where space and power efficiency are critical. The TPS60150DRVR is capable of delivering a 5V output from an input voltage range of 2.7V to 5.5V, making it an ideal choice for devices powered by lithium-ion batteries or USB ports.

One of the key features of the TPS60150DRVR is its low-noise operation, which is essential for sensitive RF and audio applications. The device uses a 1-MHz fixed-frequency switching algorithm that helps to minimize electromagnetic interference (EMI), allowing for use in close proximity to RF and audio components without causing disruption.

The TPS60150DRVR is also equipped with a Power Save Mode that improves efficiency at light loads, which is particularly beneficial for extending battery life in portable devices. This feature allows the charge pump to automatically switch between a low quiescent current mode and a normal mode depending on the load conditions.

For protection, the TPS60150DRVR includes over-temperature and over-current protection circuits. These safety features ensure that the device and the end product are safeguarded against potential damage from abnormal operating conditions. Additionally, the device has a thermal shutdown feature that prevents overheating, enhancing the reliability and longevity of the product.

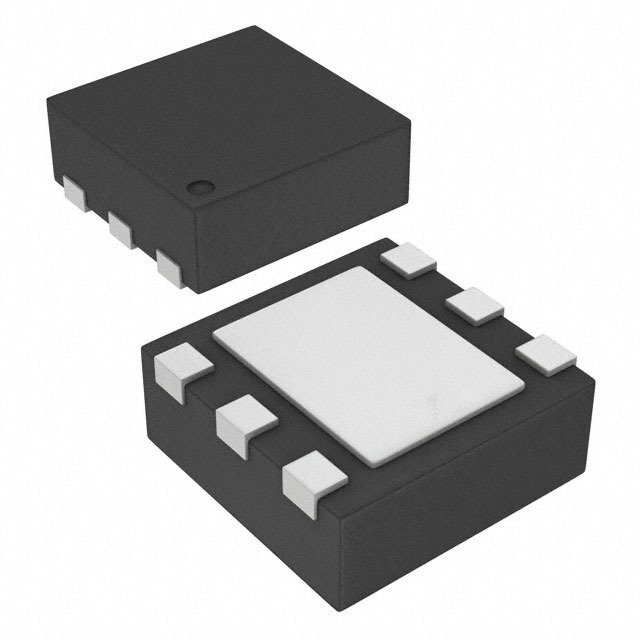

The TPS60150DRVR comes in a small 6-pin SON package with a compact 3mm x 3mm footprint, which is highly suitable for space-constrained applications. Its small size and high integration level reduce the need for external components, simplifying design and saving board space.

In summary, the TPS60150DRVR from Texas Instruments is a versatile, efficient, and reliable solution for a wide range of portable applications. Its low-noise operation, high efficiency, and compact size make it an excellent choice for designers looking to optimize their power management solutions.

Key Features:

• Fixed 5V Output Voltage
• Input Voltage Range: 2.7V to 5.5V
• Low-Noise Operation with 1-MHz Fixed-Frequency Switching
• Power Save Mode for Improved Light-Load Efficiency
• Over-Temperature and Over-Current Protection
• Thermal Shutdown Feature
• Compact 6-pin SON Package (3mm x 3mm)
