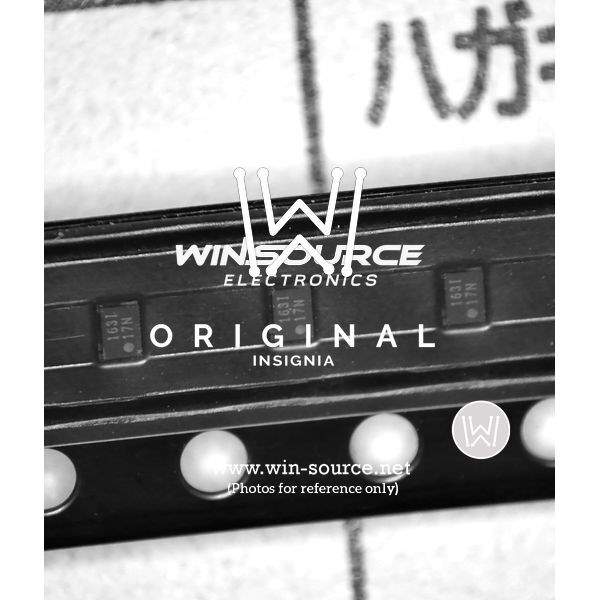

Overview of Texas Instruments TPS610994YFFR

The Texas Instruments TPS610994YFFR is a high-performance, low-power boost converter designed for battery-powered and low-power applications. This efficient power management integrated circuit (IC) is particularly suitable for devices that require a small form factor and extended battery life, such as wearable electronics, wireless sensors, and portable medical devices.

Key Features

• Input Voltage Range: The TPS610994YFFR operates with an input voltage range from 0.7V to 5.5V, making it versatile for use with various battery chemistries and configurations.
• Adjustable Output Voltage: Users can adjust the output voltage from 1.8V to 5.5V via an external resistor divider, allowing for a wide range of power supply needs.
• High Efficiency: With a typical efficiency of up to 92%, this boost converter minimizes energy loss, thereby extending battery life and reducing heat generation.
• Ultra-Low Quiescent Current: The device features an ultra-low quiescent current of just 1.5µA, which is crucial for battery conservation in standby and light-load conditions.

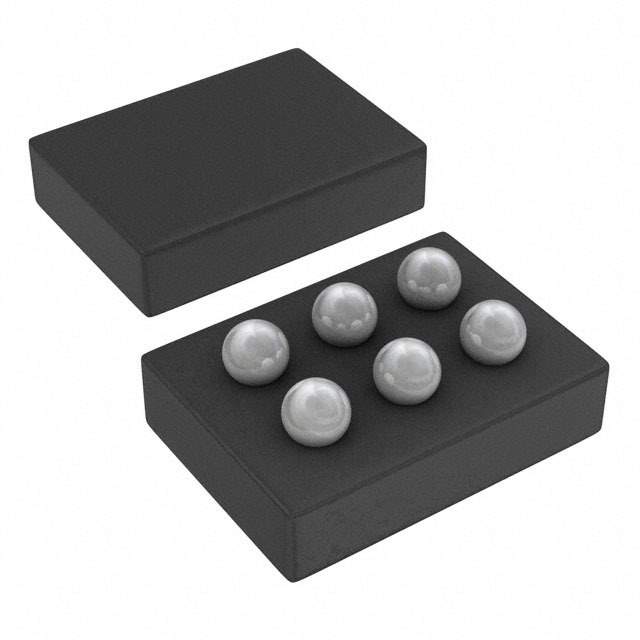

• Package: The TPS610994YFFR comes in a compact, space-saving 6-pin wafer chip-scale package (WCSP).

Applications

• Wearable Technology
• Wireless Sensors and IoT Devices
• Portable Medical Equipment
• Energy Harvesting Systems
• Smart Metering

Protection Features

The TPS610994YFFR includes a variety of integrated protection features to ensure the stability and longevity of the end application. These include over-temperature protection, output over-voltage protection, and under-voltage lockout. These safeguards help to prevent damage to the IC and connected components under abnormal conditions.

Conclusion

With its combination of high efficiency, low quiescent current, and a wide input voltage range, the Texas Instruments TPS610994YFFR is a robust solution for designers looking to optimize power in their compact, battery-operated products. Its adjustable output voltage and comprehensive protection features make it a flexible and reliable choice for a multitude of applications.
