Product Overview: TPS61161DRVR from Texas Instruments

The TPS61161DRVR is a high-performance, monolithic, switch-mode LED driver with integrated power switch designed for driving a single LED or multiple series-connected LEDs from a power supply voltage ranging from 3 V to 18 V. Manufactured by Texas Instruments, a leader in semiconductor solutions, this device is ideal for a wide range of applications including backlighting in LCD displays, automotive interior or indicator lighting, and portable flashlights.

Key Features

• Wide Input Voltage Range: Operates from 3 V to 18 V, accommodating a variety of power sources.
• Integrated 1.2-A Switch: The built-in switch minimizes external component count and simplifies design.
• High Efficiency: A switch-mode driver provides high efficiency and better heat management compared to linear LED drivers.
• Adjustable Dimming: Offers both analog and PWM dimming control, providing flexibility in controlling brightness levels.

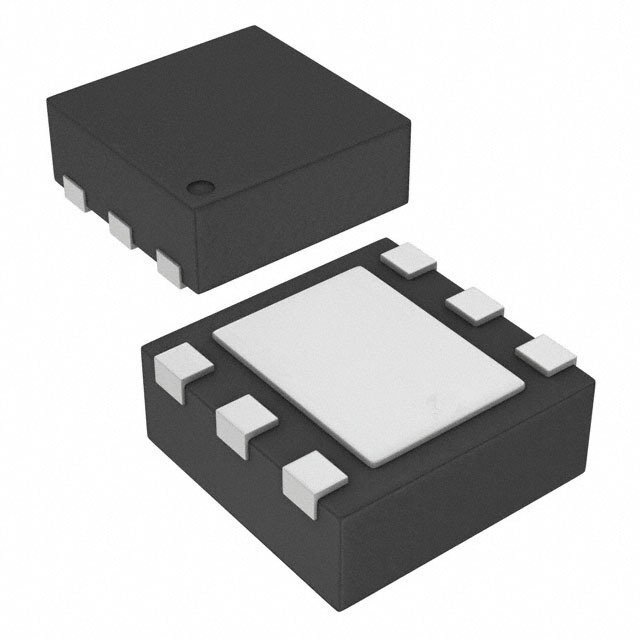

• Small Package Size: Available in a 2mm x 2mm WSON package, ideal for space-constrained applications.
• Protection Features: Includes built-in over-voltage, thermal shutdown, and LED open-circuit protection, ensuring reliable operation and longevity.

Applications

• LCD Backlighting
• Automotive Lighting
• General Illumination
• Portable Flashlights
• Signage and Decorative LED Lighting

The TPS61161DRVR's high flexibility and ease of use make it an excellent choice for designers looking to create compact, energy-efficient LED lighting solutions. Its programmable switching frequency allows optimization between efficiency and external component size, while the Synchronous Rectification feature enhances efficiency further when the LED current is reduced during dimming. The device's robust protection features ensure that the LED array is safeguarded against common electrical faults, contributing to the overall durability of the end product.

For detailed technical specifications, application circuits, and layout guidelines, designers can refer to the comprehensive datasheet and design resources available on the Texas Instruments website.
