The TPS61195RUYT is a high-efficiency, versatile LED driver integrated circuit (IC) designed by Texas Instruments. This advanced driver IC is specifically engineered to cater to a broad range of lighting applications, including backlighting for monitors and TVs, automotive lighting, and general illumination.

Key Features:

• Wide Input Voltage Range: The device supports an input voltage range from 4.5V to 18V, making it suitable for use with a variety of power sources.
• High-Efficiency: With an integrated switch FET, the TPS61195RUYT offers a highly efficient solution for driving LEDs, which can help to reduce power consumption and heat generation.
• Programmable Switching Frequency: The switching frequency can be programmed from 600 kHz to 1.2 MHz, allowing designers to optimize the driver for specific applications and minimize electromagnetic interference (EMI).
• Dimming Capabilities: It features both analog and PWM dimming control, providing flexibility for brightness control in various lighting applications.
• Thermal Shutdown Protection: The device includes thermal shutdown protection to prevent damage from overheating, enhancing the longevity and reliability of the application.

Applications:

• LED Backlighting for LCD TVs and Monitors
• Automotive Interior or Exterior Lighting
• General LED Illumination
• Architectural and Decorative Lighting

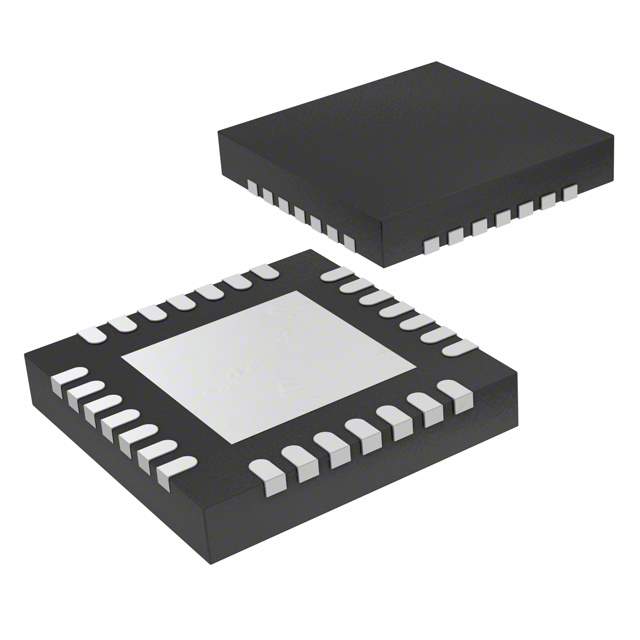

The TPS61195RUYT is available in a compact QFN package, which is highly suitable for space-constrained applications. Its robust design includes integrated open LED and short-circuit protection, ensuring safe operation under a variety of fault conditions. The device also supports series and parallel LED string configurations, providing design flexibility to meet specific lighting requirements.

As a product of Texas Instruments, a leader in semiconductor solutions, the TPS61195RUYT is backed by extensive support and documentation, making it a reliable choice for designers looking to create efficient and innovative lighting solutions.
