Introduction to Texas Instruments TPS62133RGTR

The TPS62133RGTR is a highly efficient synchronous step-down DC/DC converter designed by Texas Instruments, catering to a wide array of applications that demand low power consumption and a small footprint. This converter is part of the TPS6213x family, known for their ease of use and flexibility, making them an ideal choice for portable and battery-powered devices.

Key Features

• High-Efficiency Synchronous Step-Down Converter: The TPS62133RGTR boasts a high efficiency that translates to longer battery life and reduced heat dissipation, which is crucial for compact electronic devices.
• Wide Input Voltage Range: With an input voltage range of 3V to 17V, this converter supports a variety of power sources, from single-cell batteries to intermediate bus voltages, providing designers with a versatile power solution.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.9V to 6V, allowing for a wide range of applications and compatibility with different ICs and processors.

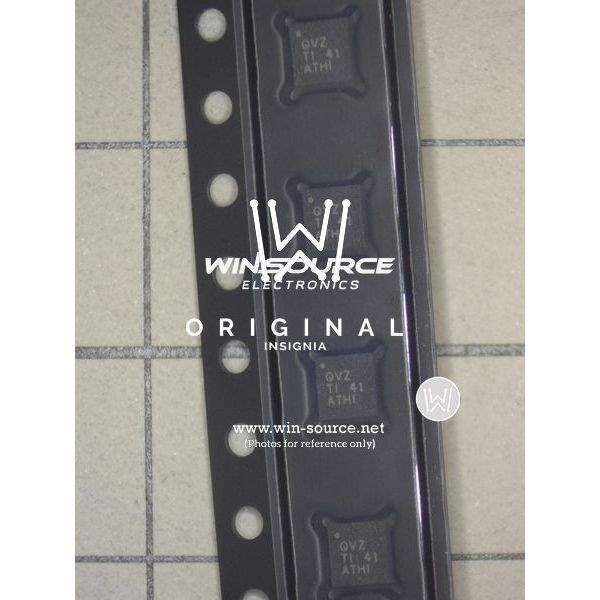

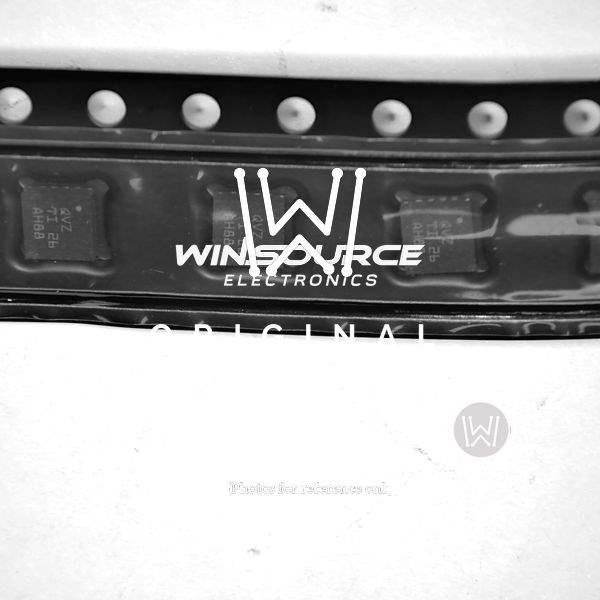

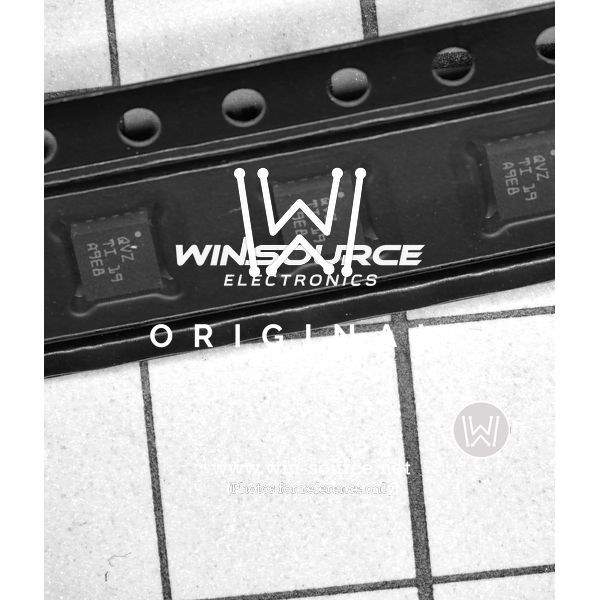

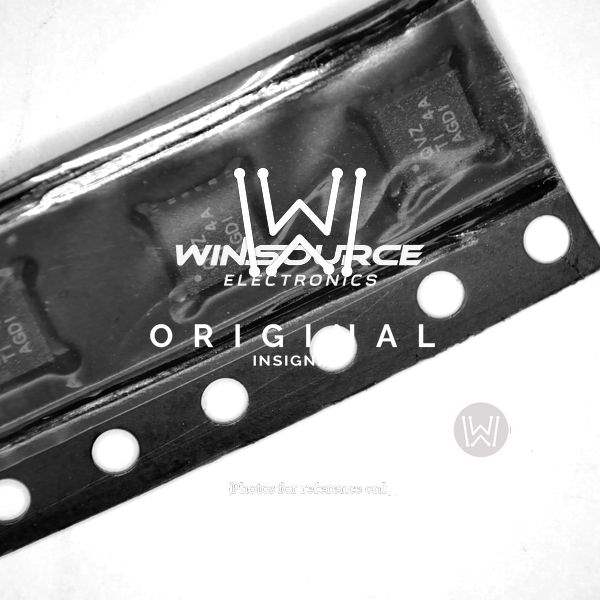

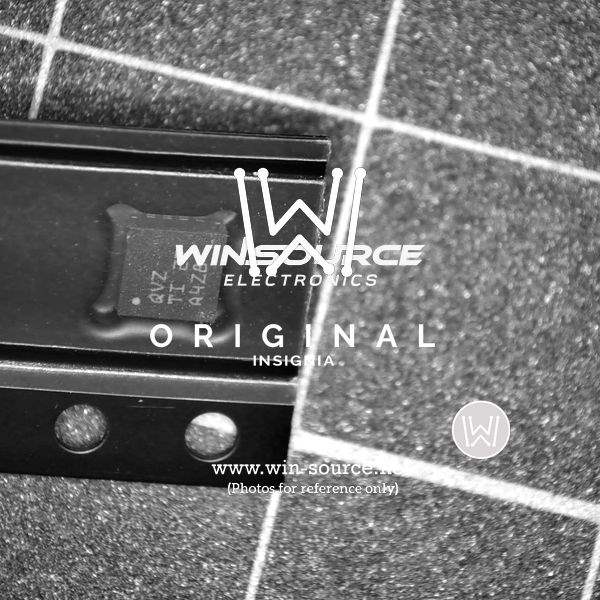

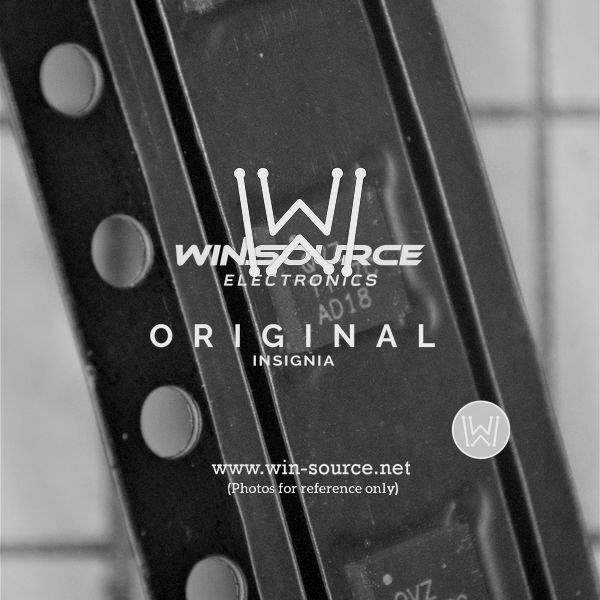

• Compact QFN Package: The device comes in a 16-pin QFN package with a 3.5mm x 3.5mm footprint, which is ideal for space-constrained applications.
• Integrated Protection Features: The TPS62133RGTR includes over-temperature, over-current, and under-voltage lockout protections to ensure the longevity and reliability of both the converter and the overall system.

Applications

The versatility of the TPS62133RGTR makes it suitable for a broad range of applications, including:

• Portable and battery-powered equipment
• Wireless power supplies
• Point of Load (POL) conversions
• Embedded systems
• Power management for processors and DSPs

Conclusion

The Texas Instruments TPS62133RGTR is a compact and efficient solution for modern electronic devices that require a reliable and adjustable power supply. Its wide input voltage range, adjustable output voltage, and integrated protection features make it a robust choice for designers looking to enhance the performance and longevity of their products. Whether for portable devices, wireless applications, or embedded systems, the TPS62133RGTR stands out as a versatile component in the Texas Instruments portfolio.
