Overview of Texas Instruments TPS62825DMQR

The TPS62825DMQR is a highly efficient, synchronous step-down converter from Texas Instruments designed to deliver outstanding performance for a wide range of applications. This compact and versatile power management IC is suitable for battery-powered systems, embedded solutions, and portable devices due to its low quiescent current and high efficiency across light and heavy loads.

Key Features

• High Efficiency: The TPS62825DMQR offers a peak efficiency of up to 95%, ensuring minimal power loss during the conversion process. This leads to extended battery life in portable applications and reduced thermal dissipation, which is crucial for maintaining system reliability.
• Wide Input Voltage Range: With an input voltage range of 2.4V to 5.5V, this converter is versatile enough to be used in various system architectures, accommodating single-cell lithium-ion batteries or higher voltage sources.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.6V to VIN, allowing for a broad range of output voltages suitable for driving different loads, from microcontrollers to RF circuits.
• Low Quiescent Current: An ultra-low quiescent current of just 20μA (typical) under light-load conditions contributes to the overall energy efficiency of the system, making it an ideal choice for standby and battery-operated applications.

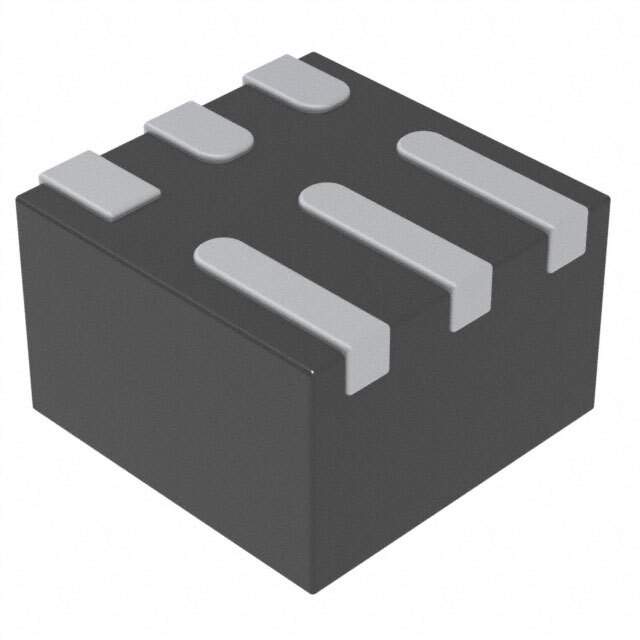

• Small Footprint: The TPS62825DMQR comes in a compact VSON-10 package, making it a space-saving solution for densely packed PCBs.
• Thermal Shutdown and Over-Current Protection: Built-in safety features include thermal shutdown and over-current protection, ensuring the longevity and safe operation of the device under various conditions.

Applications

The TPS62825DMQR is well-suited for a range of applications, including but not limited to:

• Portable and battery-powered devices
• Wireless power supplies
• Smart meters and IoT devices
• Point of Load (POL) conversions

With its high efficiency, wide input range, and compact size, the TPS62825DMQR from Texas Instruments is an excellent choice for designers looking to optimize power management in their next project.
