Product Overview: TPS630250RNCT by Texas Instruments

The TPS630250RNCT is a high-efficiency, low quiescent current buck-boost converter from Texas Instruments, designed to manage power supply requirements in systems where the input voltage can be higher or lower than the output voltage. This integrated circuit is part of TI's extensive range of power management solutions, tailored to meet the demands of various electronic applications.

Featuring a wide input voltage range from 1.8V to 5.5V, the TPS630250RNCT is versatile enough to operate from standard 3.3V or 5V rails or powered by rechargeable batteries such as Li-Ion or Li-Polymer. Its flexibility makes it an ideal choice for portable devices where the input voltage can vary significantly during operation.

The device offers an adjustable output voltage range from 1.2V to 5.5V, which can be set by external resistors. This allows designers to customize the output to suit the specific needs of their application. The TPS630250RNCT can supply up to 2A of continuous output current at 3.3V in buck mode and 800mA at 3.3V in boost mode, making it capable of supporting a wide array of power requirements.

Efficiency is a key attribute of the TPS630250RNCT, with up to 96% efficiency during operation. This high efficiency, combined with a low quiescent current of typically 50 µA, helps to maximize battery life in portable applications. The device also incorporates a Power Save Mode, which maintains high efficiency over a wide load current range.

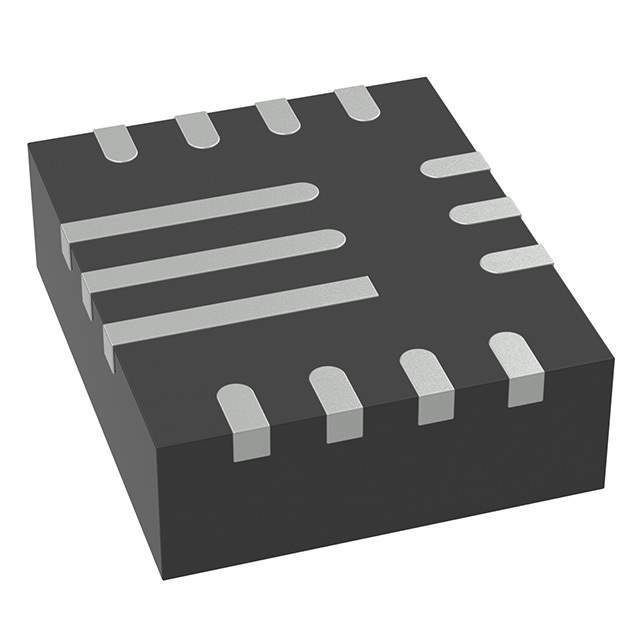

Protection features of the TPS630250RNCT include over-temperature protection, over-voltage protection, and under-voltage lockout, ensuring reliable operation under various conditions. The device is available in a compact 16-pin QFN package, which is suitable for space-constrained applications.

In summary, the TPS630250RNCT from Texas Instruments is a highly efficient, flexible, and reliable power management solution that is well-suited for a wide range of applications, including handheld devices, wireless peripherals, and portable media players. Its ability to automatically transition between buck and boost modes ensures uninterrupted power supply, while its advanced protection features safeguard the system against potential damage.
