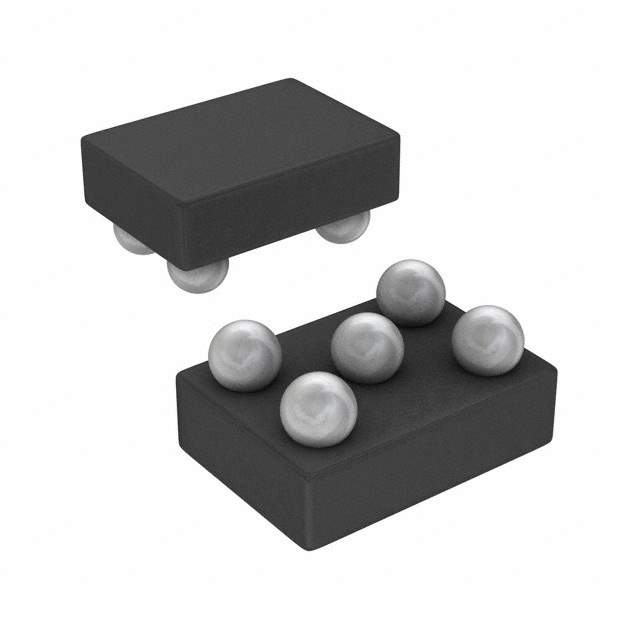

The TPS72018YZUR from Texas Instruments is a high-performance, low-dropout (LDO) linear voltage regulator designed to deliver a continuous output current of up to 200 mA. This component is ideal for sensitive applications that require a stable and clean power supply, such as RF and analog circuits, portable devices, and medical equipment.

Key Features

• Output Voltage: The device provides a fixed output voltage of 1.8V, which is suitable for powering low-voltage digital ICs and microcontrollers.
• High Accuracy: The output voltage is accurate to within 2% over the entire temperature range, load, and input voltage variations, ensuring reliable operation of the powered device.
• Low Dropout: With a very low dropout voltage, the TPS72018YZUR can operate efficiently even when the input voltage is close to the output voltage, which is particularly beneficial for battery-powered applications.
• Low Quiescent Current: The device features a low quiescent current of typically 17 μA, which helps to prolong battery life in portable applications.
• Stable with Low-ESR Capacitors: The TPS72018YZUR is stable with ceramic output capacitors as low as 10 μF, providing flexibility in design and reducing overall solution size.
• Thermal and Overcurrent Protection: Built-in thermal shutdown and overcurrent protection safeguard the device and the application from damage due to overheating or excessive current draw.
• Power Good Output: The regulator features a power good output that indicates when the output voltage is within its nominal value, which is useful for power sequencing and monitoring in complex systems.

Applications

The TPS72018YZUR is versatile and can be used in a variety of applications where power efficiency and space constraints are critical. It is particularly well-suited for:

• Portable and battery-powered devices
• Wireless LAN and GPS systems
• Medical devices and healthcare products
• Power management for DSPs and microcontrollers

With its combination of features and protections, the TPS72018YZUR is an excellent choice for designers looking for a reliable and efficient power management solution.
