Product Overview: Texas Instruments TPS76318DBVR

The TPS76318DBVR from Texas Instruments is a highly efficient, low-dropout (LDO) voltage regulator that offers the benefit of ultra-low quiescent current, making it a perfect choice for power-sensitive applications. This regulator is designed to provide a fixed output voltage of 1.8V, with an impressive output current capacity of up to 150mA.

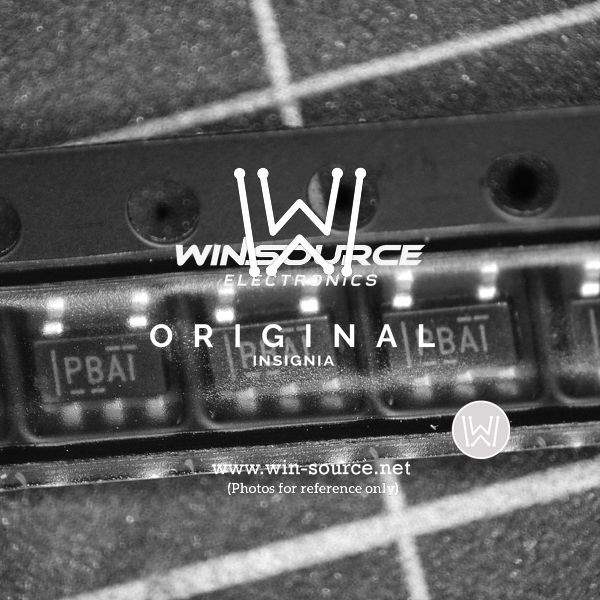

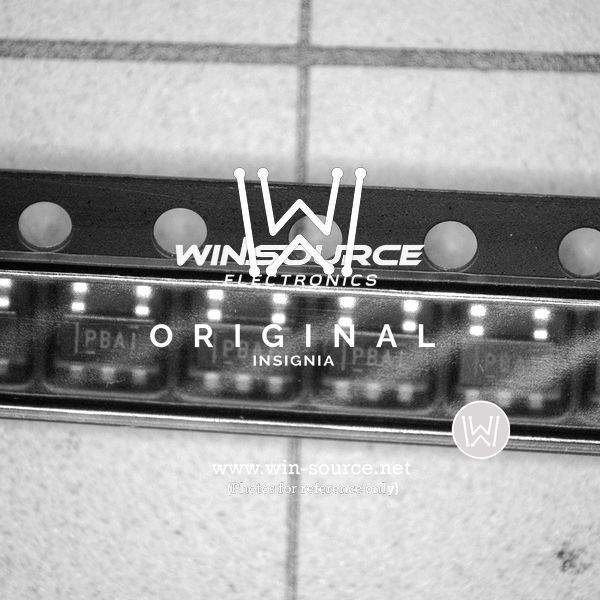

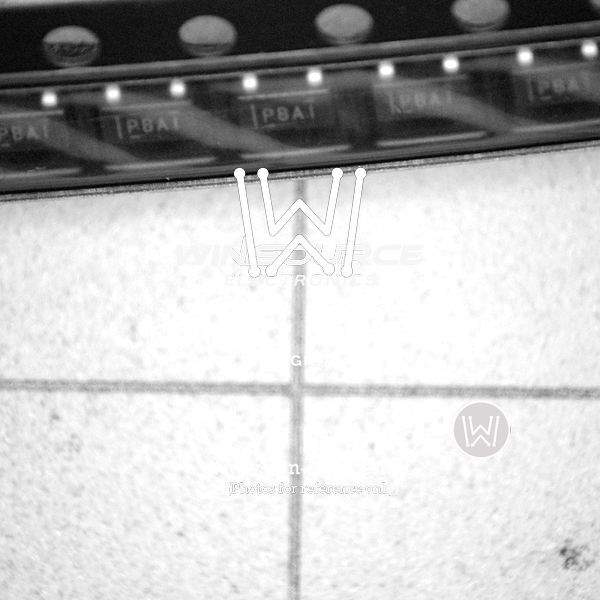

Encased in a compact SOT-23-5 package, the TPS76318DBVR is an ideal solution for space-constrained applications. The small footprint of this device allows it to be easily integrated into a wide range of electronic systems, including portable devices, where efficiency and battery life are of paramount importance.

Key Features

• Low Dropout: The device's low dropout voltage ensures efficient operation even when the input voltage is very close to the output voltage, which is particularly beneficial for battery-operated devices.
• High Accuracy: This voltage regulator provides a high level of output voltage accuracy, which is essential for sensitive electronic components that require a stable power supply.
• Thermal Shutdown and Overcurrent Protection: The TPS76318DBVR includes built-in safety features that protect the device and the system from damage due to excessive temperature and current conditions.
• Low Quiescent Current: With an extremely low quiescent current, this regulator helps to extend battery life, making it suitable for applications such as mobile phones, PDAs, and other portable electronic devices.
• Stable with Low-ESR Capacitors: The device is stable with ceramic capacitors, which allows for the use of cost-effective, space-saving capacitors with low equivalent series resistance (ESR).

Applications

The TPS76318DBVR is versatile and can be used in various applications, including:

• Portable electronics
• Wireless communication devices
• Power management for DSPs and microcontrollers
• Handheld instruments

With its excellent power supply rejection ratio (PSRR) and fast transient response, the TPS76318DBVR is not only reliable but also ensures the smooth operation of sensitive electronic equipment. Its operational temperature range from -40°C to +125°C provides additional assurance for performance across diverse environmental conditions.

Overall, the TPS76318DBVR from Texas Instruments is a high-quality, reliable solution for applications requiring efficient voltage regulation with minimal power loss.
