Overview of TPS77501PWPR

The TPS77501PWPR is a high-performance, low-dropout (LDO) voltage regulator from Texas Instruments designed to handle a wide range of applications. This device offers an optimal balance of features to provide efficient power management solutions for consumer electronics, industrial systems, and automotive applications.

Key Features

• Adjustable Output: The TPS77501PWPR features an adjustable output voltage range, which can be set from 1.5V to 5.5V using external resistors. This flexibility allows the device to be tailored to the specific needs of various circuits and applications.
• High Output Current: Capable of providing an output current of up to 500mA, this LDO regulator can support a wide array of components, from small sensors to more demanding processors and ICs.
• Low Dropout: The low dropout voltage of the TPS77501PWPR minimizes power loss and improves efficiency, making it an excellent choice for battery-powered devices where energy conservation is critical.
• Fast Transient Response: The device's fast transient response ensures stable performance even during rapid changes in load, which is essential for maintaining the integrity of sensitive electronic circuits.
• Power Good (PG) Output: A built-in power good output provides a status signal indicating when the output voltage is within its nominal range, which is useful for sequencing power supplies in complex systems.
• Thermal Shutdown and Overcurrent Protection: Safety features such as thermal shutdown and overcurrent protection safeguard the device and the system from potential damage due to overheating or excessive current draw.

Package and Reliability

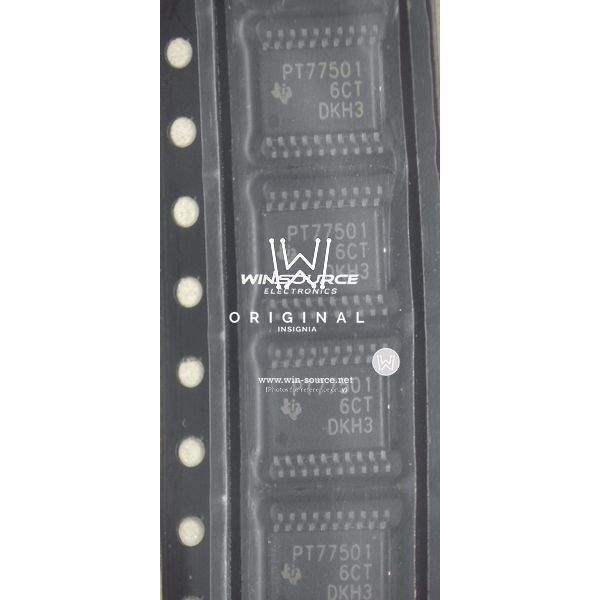

The TPS77501PWPR is available in a 20-pin TSSOP (Thin Shrink Small Outline Package) with PowerPAD™, which offers enhanced thermal performance and a compact footprint suitable for space-constrained applications. Reliability is a cornerstone of Texas Instruments' products, and this LDO regulator is no exception, designed to meet stringent industry standards for performance and durability.

Applications

With its versatile feature set, the TPS77501PWPR is well-suited for a variety of applications, including but not limited to:

• Portable and Battery-Powered Devices
• Microcontroller Power Supplies
• Automotive Electronics
• Industrial Control Systems
• Point-of-Load Power Supplies

For designers seeking a reliable and adaptable power management solution, the TPS77501PWPR from Texas Instruments represents a robust choice that can meet the demands of a diverse range of electronic systems.
