The TPS7A2433DBVR from Texas Instruments is a high-performance, low-dropout (LDO) voltage regulator designed to deliver a stable and precise output voltage. This device is ideal for sensitive applications requiring a steady power supply, such as RF and analog circuits, as well as portable and battery-powered electronics.

Key Features:

• Output Voltage Range: The TPS7A2433DBVR offers an adjustable output voltage ranging from 1.21 V to 20 V, which can be set with external resistors. This flexibility makes it suitable for a wide array of applications.
• Low Dropout Voltage: This regulator maintains its performance with a minimal difference between the input and output voltages, which enhances efficiency and allows operation under low-vin conditions.
• High Output Current: Capable of delivering up to 250 mA of output current, this LDO can power a variety of components without the need for an additional heat sink, saving space and cost.
• Thermal Protection: The device includes an over-temperature shutdown feature that protects the circuit by turning off the output if the internal temperature exceeds safe operating limits.
• Low Quiescent Current: With a low quiescent current, the TPS7A2433DBVR is optimized for battery-powered applications, as it minimizes power consumption when in standby mode.

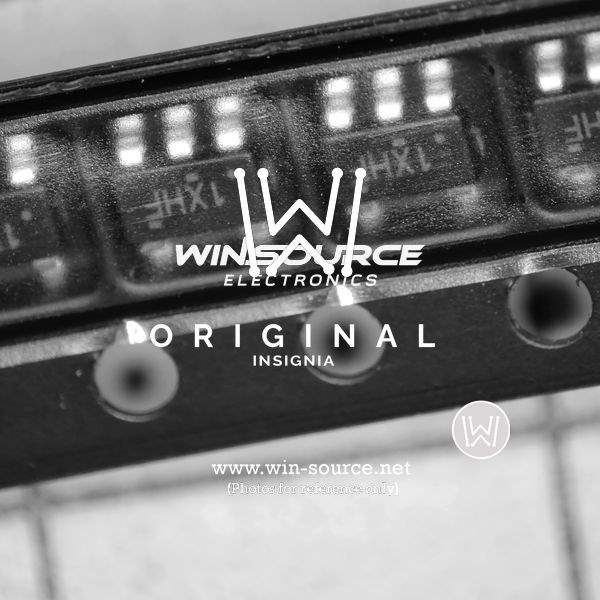

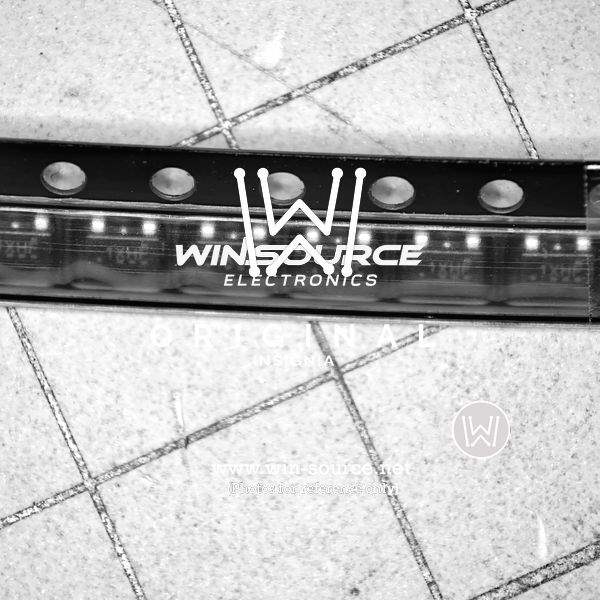

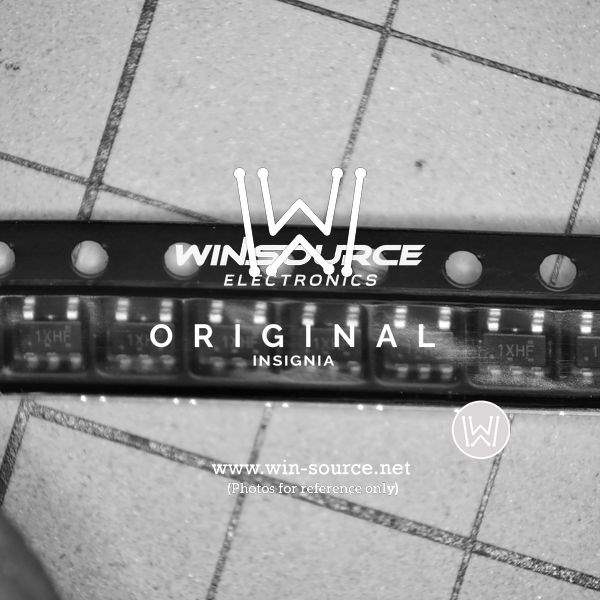

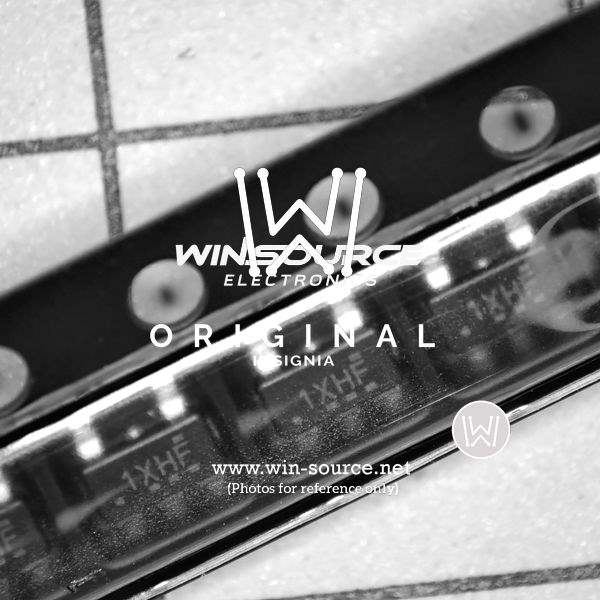

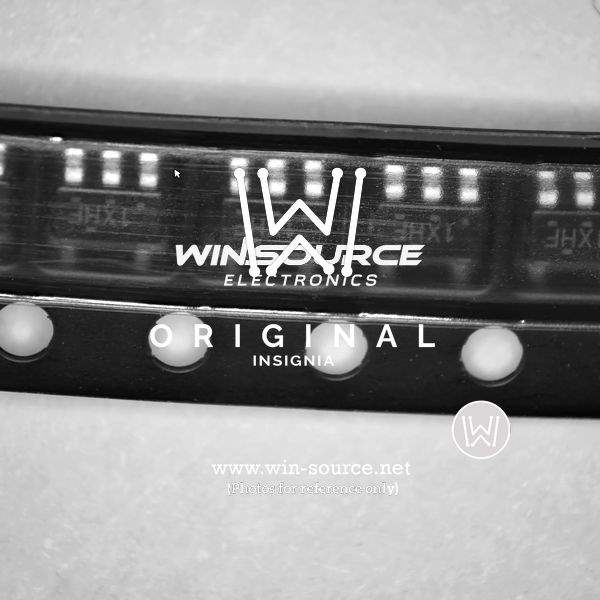

• Small Package Size: Housed in a compact SOT-23-5 package, the TPS7A2433DBVR saves valuable board space and is suitable for high-density circuit designs.

Applications:

The versatility of the TPS7A2433DBVR makes it an excellent choice for a variety of applications, including:

• Portable and battery-powered devices
• RF and analog circuits
• Microcontroller power supplies
• Post-regulation for switching power supplies

With its combination of flexibility, efficiency, and compact size, the TPS7A2433DBVR from Texas Instruments stands out as a reliable and practical solution for meeting stringent power requirements in modern electronic designs.
