Overview of Texas Instruments TPS7A4101DGNR

The TPS7A4101DGNR is a highly reliable and efficient low-dropout (LDO) voltage regulator designed by Texas Instruments (TI) to meet the needs of a wide array of applications. This regulator is capable of delivering a continuous output current of up to 50 mA with an input voltage range from 3 V to 33 V, making it an excellent choice for systems that require a stable and precise voltage supply.

Key Features

• Wide Input Voltage Range: The device can operate with input voltages from 3 V to 33 V, accommodating a variety of power sources and conditions.
• Low Dropout Voltage: The TPS7A4101DGNR offers a low dropout voltage, which enhances its efficiency and allows it to maintain a steady output even when the input-to-output voltage differential is minimal.
• Adjustable Output Voltage: This LDO regulator provides an adjustable output voltage that can be set from 1.2 V to 10 V using external resistors, offering flexibility for different design requirements.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and overcurrent protection features, ensuring safe operation under abnormal conditions.
• Stable with Low-ESR Capacitors: The TPS7A4101DGNR is stable with ceramic capacitors that have a low equivalent series resistance (ESR), which helps in reducing the overall solution size and cost.

Applications

The versatility of the TPS7A4101DGNR makes it suitable for a broad range of applications, including:

• Industrial Control Systems
• Automotive Electronics
• Telecommunication Equipment
• Portable and Battery-Powered Devices

Package and Quality

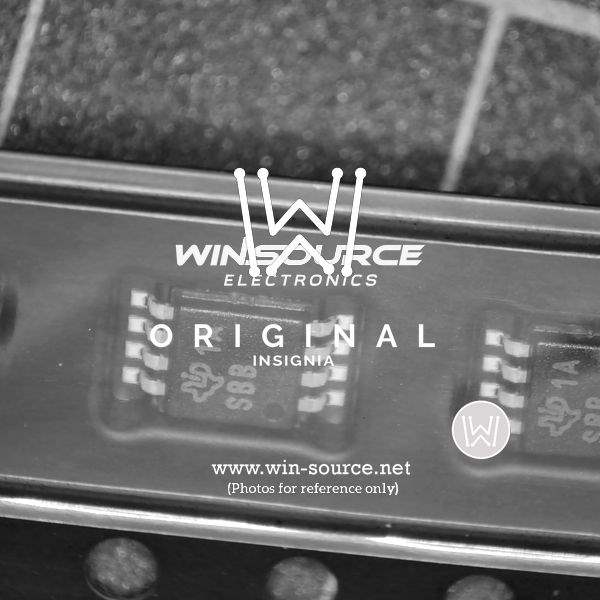

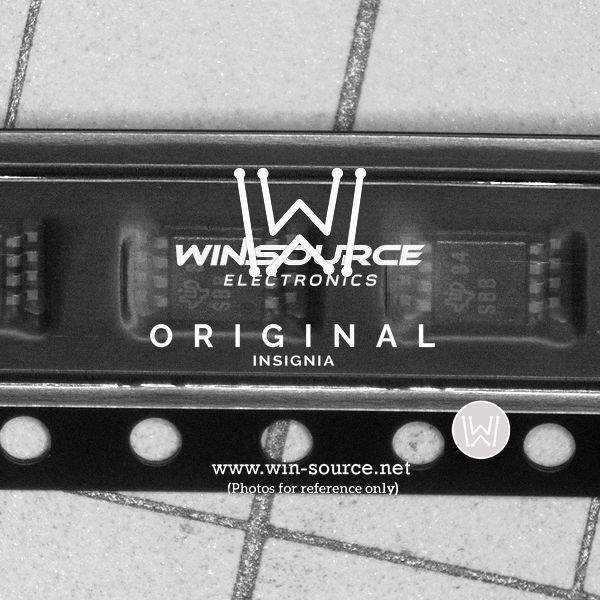

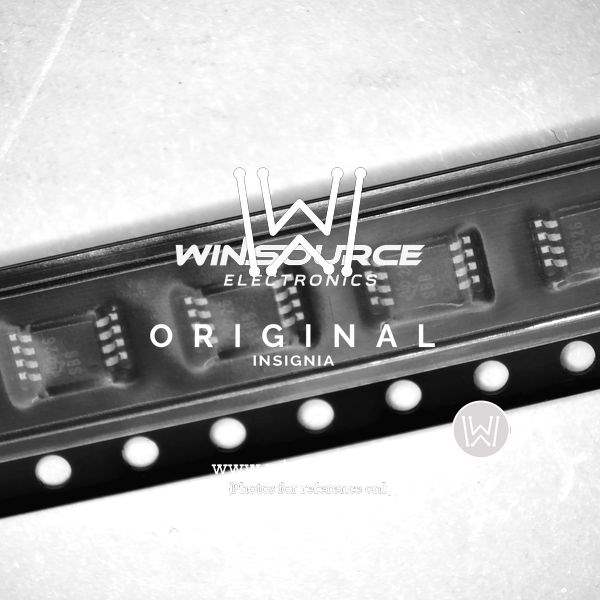

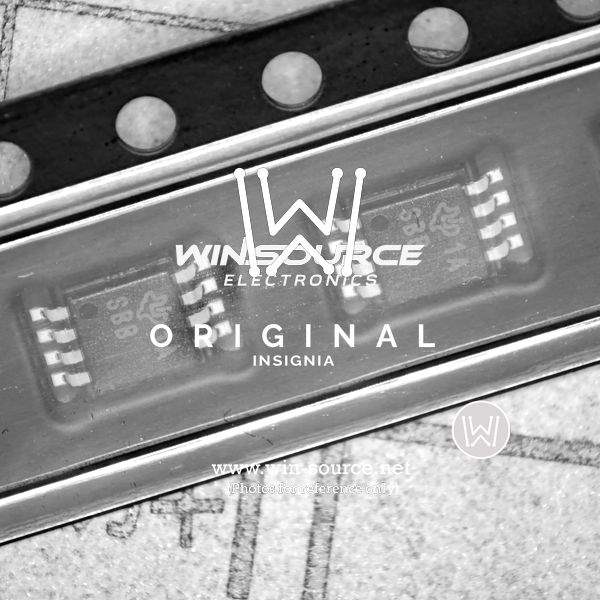

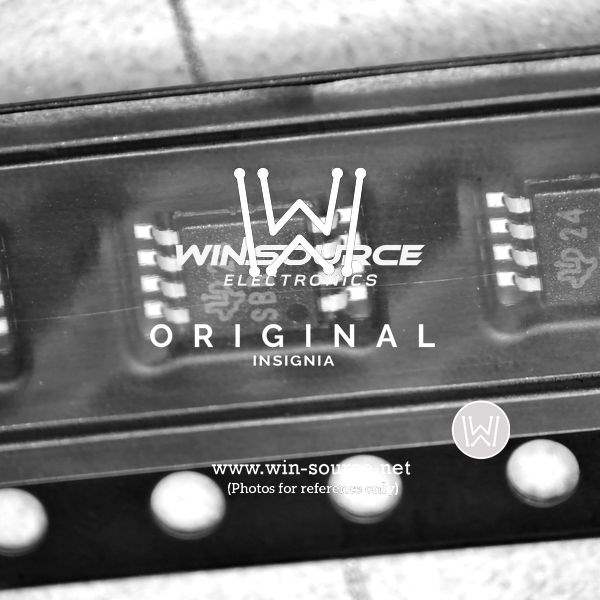

The TPS7A4101DGNR comes in an 8-pin MSOP PowerPAD™ package that is optimized for thermal performance. Texas Instruments is known for its commitment to quality, and this product is no exception. It is designed to meet the rigorous requirements of industrial and automotive industries, ensuring reliability and performance.

With its robust feature set and TI's trusted manufacturing excellence, the TPS7A4101DGNR LDO voltage regulator is an ideal choice for designers looking to enhance the performance and stability of their power management solutions.
