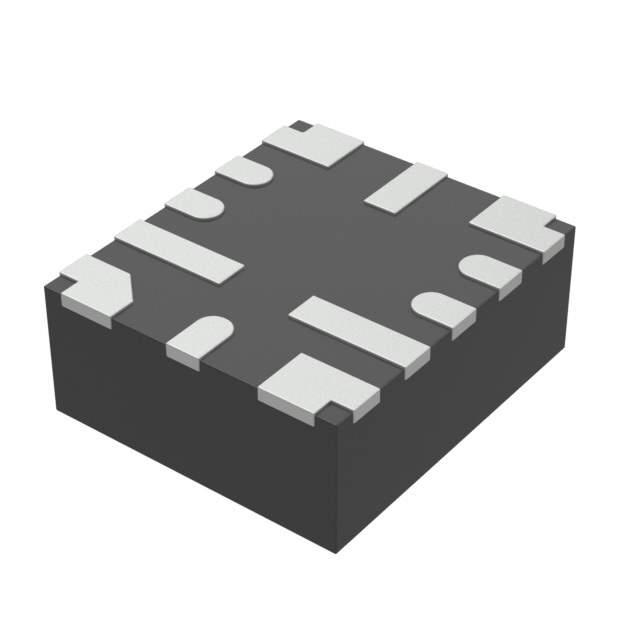

The TPS7A5401RPSR from Texas Instruments is a low-dropout (LDO) voltage regulator designed for applications requiring a high current, low voltage power supply with minimal power dissipation. This component is ideal for high-performance power management solutions in a variety of systems, including industrial, telecommunications, and consumer electronics.

Key Features

• High Output Current: Capable of delivering up to 1.5A of continuous output current, this LDO meets the needs of power-hungry circuits.
• Low Dropout: With a dropout voltage of typically 295 mV at full load, it ensures efficient operation close to the input voltage level, reducing power loss and improving system efficiency.
• Wide Input Voltage Range: The device operates over a broad input voltage range of 1.5V to 6.5V, providing versatility across various applications.
• Adjustable Output: Output voltage can be adjusted from 0.8V to 5.0V with the use of external resistors, allowing for precise voltage regulation tailored to specific requirements.
• Excellent Thermal Performance: The TPS7A5401RPSR is available in a thermally enhanced HTSSOP-20 package, which facilitates efficient heat dissipation.
• Stable with Low ESR Capacitors: The regulator is stable with ceramic capacitors, which have lower equivalent series resistance (ESR) and are smaller in size than traditional tantalum or aluminum electrolytic capacitors.

Applications

This LDO voltage regulator is suited for a wide range of applications such as:

• Post-regulation for switching supplies
• High-current power supplies
• Industrial control systems
• Telecommunication infrastructure
• FPGA, DSP, and ASIC supplies
• Portable and battery-powered equipment

Quality and Reliability

Built with Texas Instruments' commitment to quality, the TPS7A5401RPSR is designed for long-term reliability. Its robust design ensures stable operation even under varying conditions, making it a dependable choice for critical applications.
