Overview of Texas Instruments TPS7A8301ARGWR

The Texas Instruments TPS7A8301ARGWR is a high-performance, low-dropout linear regulator (LDO) designed to deliver a wide range of output currents with a minimal drop in voltage. This advanced power management integrated circuit is ideal for sensitive applications that require a stable and clean power supply.

Key Features

• High Output Current: Capable of delivering up to 2A of continuous output current, making it suitable for powering a variety of high-power devices.
• Low Dropout Voltage: Features a low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage.
• Wide Input Voltage Range: Operates over a broad input voltage range from 1.4V to 6.5V, accommodating a variety of power sources.
• Adjustable Output: The output voltage is adjustable from 0.8V to 5V, providing flexibility to meet the needs of different applications.
• Stable with Low ESR Capacitors: Stable with ceramic capacitors as low as 10μF, reducing the need for larger, more expensive tantalum capacitors.
• Thermal and Current Protection: Integrated thermal shutdown and current limit features protect the device and the load from damage due to overheating or overcurrent conditions.
• Low Noise: Offers low output noise, making it suitable for RF and precision analog circuits that require a quiet power supply.

Applications

The TPS7A8301ARGWR is versatile and can be used in a wide range of applications, including:

• Telecommunications
• Networking equipment
• RF and sensitive analog circuits
• Post-regulation for switching power supplies
• Portable and battery-powered devices

Package and Quality

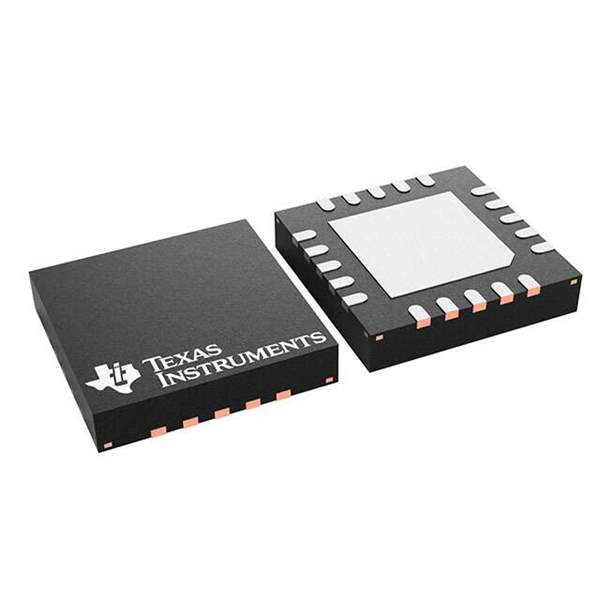

This LDO comes in a compact 20-pin QFN (RGR) package, which is designed for minimal footprint and excellent thermal performance. The device is part of Texas Instruments' commitment to high-quality and reliable components, ensuring long-term performance in a range of environmental conditions.

With its robust feature set and flexible operation, the Texas Instruments TPS7A8301ARGWR is an excellent choice for designers looking to enhance the stability and efficiency of their power supply solutions.
