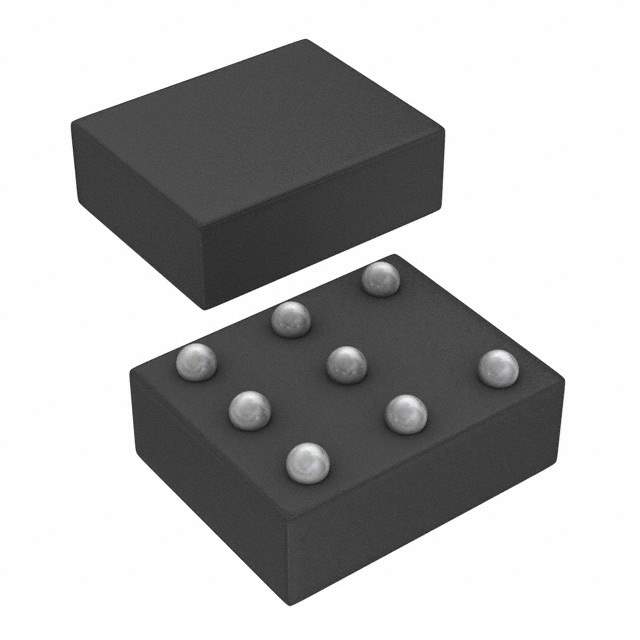

Product Overview: TPS826745SIPR by Texas Instruments

The TPS826745SIPR is a highly integrated power management solution from Texas Instruments, designed to provide a reliable and efficient power supply for space-constrained applications. This compact module is part of TI's MICROSIPTM family, which is renowned for its innovative power management technology that combines high performance with low power consumption.

Key Features

• High Efficiency: The TPS826745SIPR boasts a high-efficiency step-down converter with up to 90% efficiency, ensuring minimal power loss during operation and prolonging battery life in portable devices.
• Adjustable Output Voltage: This versatile module supports an adjustable output voltage range, allowing designers to tailor the power supply to the specific needs of their application.
• Compact Design: With a micro SiP (System-in-Package) design, the TPS826745SIPR occupies minimal board space, making it ideal for portable electronics where space is at a premium.
• Low Quiescent Current: The device features a low quiescent current, which is critical for battery-powered applications, as it helps to reduce standby power consumption and extend battery life.
• Integrated Inductor: The TPS826745SIPR includes an integrated inductor, which simplifies the design process by reducing the number of external components required and streamlining the power supply design.

Applications

The TPS826745SIPR is suitable for a wide range of applications, particularly where space and power efficiency are crucial. It is an excellent choice for powering:

• Smartphones and tablets
• Wearable technology
• Wireless sensors and IoT devices
• Portable medical devices
• Energy-harvesting systems

Technical Specifications

Some of the technical specifications of the TPS826745SIPR include:

• Input voltage range: 2.3V to 4.8V
• Adjustable output voltage range: 0.9V to 3.3V
• Maximum output current: 600 mA
• High switching frequency: 2.4 MHz
• Thermal shutdown and over-current protection

In summary, the TPS826745SIPR from Texas Instruments is an advanced, highly-efficient power management module that provides a compact and versatile solution for powering the next generation of portable and space-constrained electronic devices.
