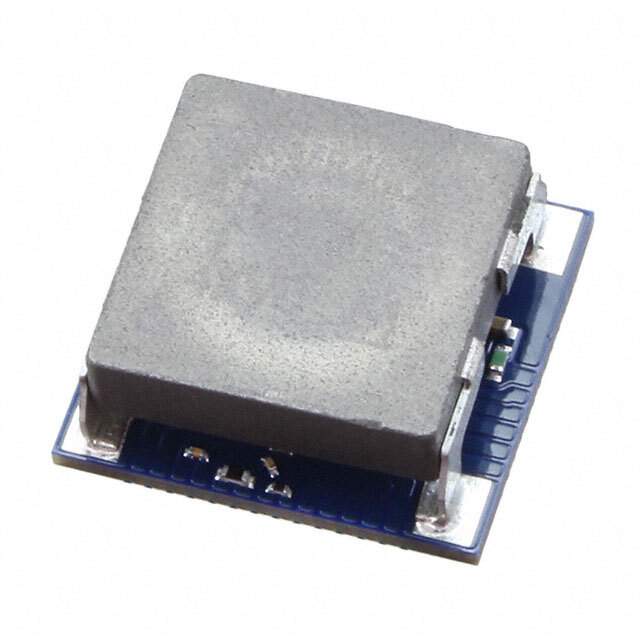

The TPSM846C24MOLR is a state-of-the-art, highly integrated power solution from Texas Instruments, designed to deliver exceptional performance and reliability for a wide range of applications. This advanced module integrates a 24-V, 6-A step-down converter with power MOSFETs, a shielded inductor, and passives into a low-profile, thermally-enhanced package. It is an optimal solution for space-constrained applications requiring high power density and efficiency.

The TPSM846C24MOLR operates over a wide input voltage range of 4.5 V to 17 V and provides an adjustable output voltage from 0.6 V to 5.5 V, which can be precisely set with an external resistor. This flexibility makes it suitable for powering a variety of ICs, including FPGAs, ASICs, microprocessors, and DSPs. Its high efficiency, up to 95%, ensures minimal heat generation and a lower system temperature, thus enhancing system reliability and longevity.

This module is equipped with advanced features such as overcurrent protection, overvoltage protection, thermal shutdown, and undervoltage lockout, all of which contribute to the safe operation of the end application. Additionally, the TPSM846C24MOLR supports pre-biased startup, ensuring a smooth power-up sequence for sensitive electronic systems.

The TPSM846C24MOLR comes in a compact QFN package with a footprint of just 11 mm x 15 mm x 4 mm, making it an excellent choice for space-constrained applications. Its integrated approach reduces design complexity, helping to accelerate time to market, while also simplifying the supply chain by reducing the number of discrete components required on the PCB.

Texas Instruments' attention to detail in the design of the TPSM846C24MOLR ensures that it meets the stringent requirements of various industries, including telecommunications, networking, and industrial automation. Whether you are designing a new system or upgrading an existing one, the TPSM846C24MOLR provides the performance, efficiency, and reliability that engineers have come to expect from Texas Instruments.
