Product Overview: Texas Instruments UA78L05ACDR

The UA78L05ACDR from Texas Instruments is a fixed-voltage integrated circuit voltage regulator designed to offer a stable 5V output. This regulator is part of the 78L05 series, which is well-known for its reliability and consistency in performance. It is a popular choice for a wide range of electronic applications, particularly where a precise 5V power supply is essential.

Key Features:

• Output Voltage: The UA78L05ACDR provides a fixed output voltage of 5V, which is ideal for powering 5V logic circuits and other standard 5V-operated devices.
• Output Current: Capable of delivering up to 100mA of load current, this regulator can support a variety of low power applications.

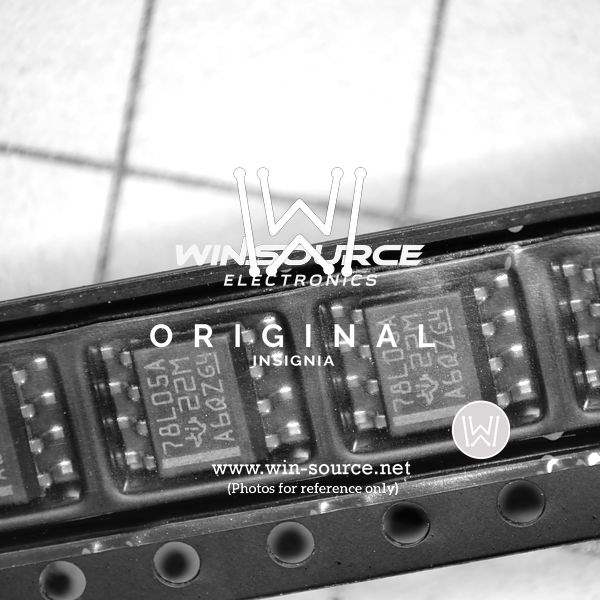

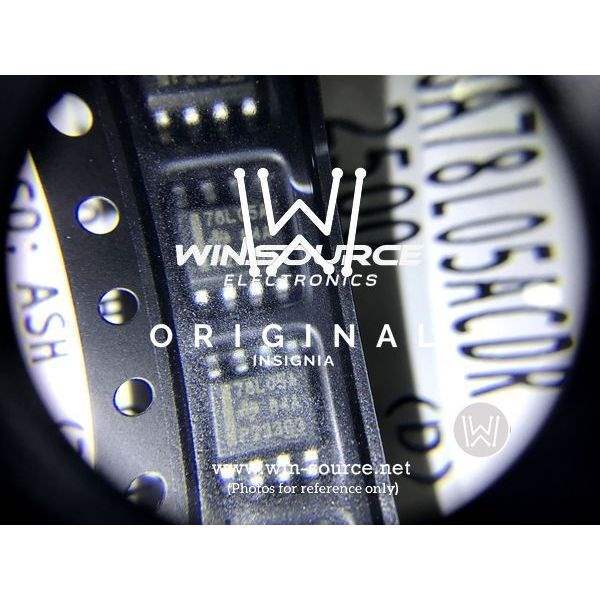

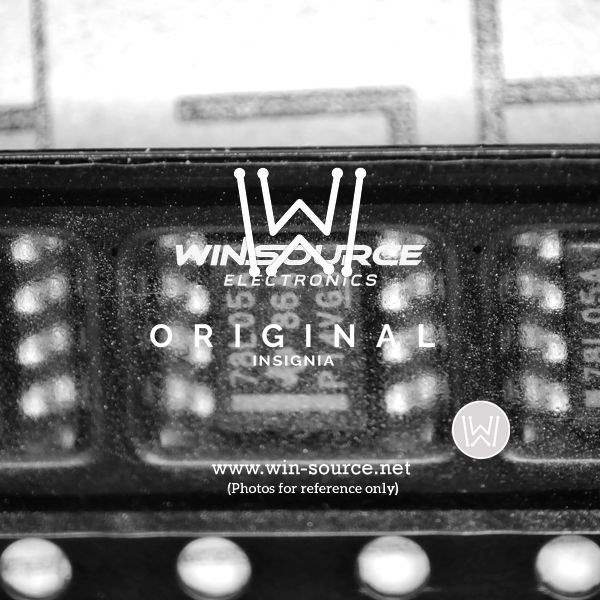

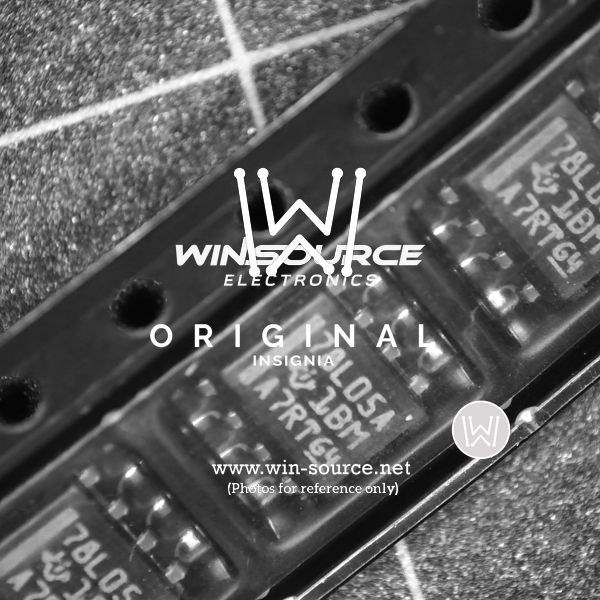

• Package Type: It is available in an 8-Pin SOIC package, which is suitable for surface-mount technology (SMT), making it a good fit for compact circuit designs.
• Thermal Protection: The device includes thermal shutdown capability, which protects the regulator from overheating and potential damage.
• Short Circuit Protection: The UA78L05ACDR also features built-in short circuit protection, ensuring long-term stability and safety of the electronic components.
• Low Dropout Voltage: The regulator operates with a low dropout voltage, ensuring efficient performance even with a minimal difference between the input and output voltages.

Applications:

The UA78L05ACDR is versatile and can be used in various electronic circuits. Its applications include:

• Battery-powered devices
• Consumer electronics
• Small home appliances
• Personal computers and peripherals
• Embedded systems

With its robust design, the UA78L05ACDR is an excellent choice for designers looking for a dependable voltage regulator that not only provides a precise output but also includes protection features to ensure the longevity of the application it powers. Texas Instruments' commitment to quality means that this component is manufactured with the highest standards, ensuring performance and durability for the end-user.
